NikMann-2RTF-CNC Edge Bander
Automatic CNC Edge Banding Machine with Pre-Milling, Twin Corner Rounding and Advanced Finishing
Professional CNC Edge Banding for Production

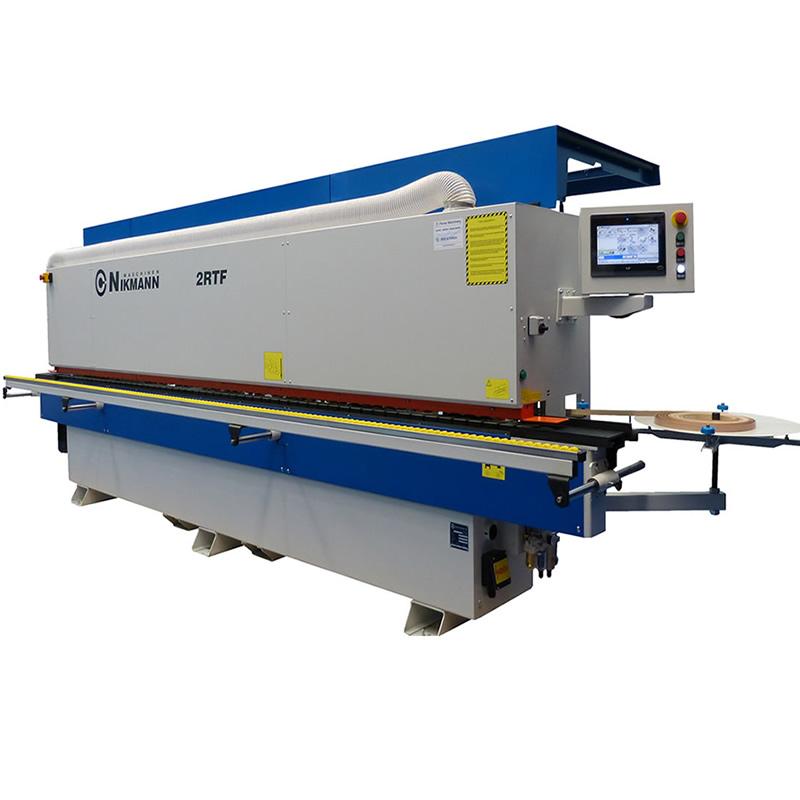

The NikMann-2RTF CNC edge bander is built for professional woodworking businesses that require consistent, repeatable and high-quality panel edge finishing.
Designed for automated production, the machine brings multiple edge processing stages together in one continuous workflow. Depending on configuration, the process can include panel preparation, adhesive application, edge tape application, trimming, corner rounding, scraping and polishing.
For cabinet makers, joinery businesses and furniture manufacturers, an automatic edge banding machine can improve production consistency while reducing manual finishing work.
- Heavy-duty automatic edge banding
- Pre-milling with servo motors
- Twin servo corner rounders
- Servo fine trimming
- Glue scraping and cleaning
- Professional buffing system
Advanced Edge Banding Technology
The NikMann-2RTF-CNC combines multiple machining stations into one automated edge finishing system.
Release Spray Station
Release Spray on Edgebanders NikMann-2RTF-cnc to keep glue from not sticking on a top and bottom of panel.
Pre-Milling Station
The pre-milling station prepares the panel edge before the edge banding process for improved consistency and edge quality.
Infrared Light
Infrared Light for warm up the panel in cold winter time.
Teflon Glue Pot
The machine is equipped with a Teflon glue pot for the hot-melt edge banding process.
Automatic Edge Feeding
Continuous automatic feeding helps maintain efficient production with reduced operator intervention.
End Sawing
Front and rear end saws process the beginning and end of the applied edge.
Fine Trimming
Servo-driven fine trimming provides controlled finishing of the applied edge material.
Twin Corner Rounders
Two servo-driven corner rounding units provide automated processing of panel corners.
Scraping & Buffing
Glue scraping, cleaning spray and buffing systems complete the edge finishing process.
Multiple Operations in One Machine
The NikMann-2RTF-CNC combines the major stages of automatic edge banding into a continuous production process.Panel Pre-Milling
Servo-driven pre-milling prepares the panel edge before adhesive application.
Hot-Melt Adhesive
The Teflon glue pot applies hot-melt adhesive as part of the automated edge banding process.
Edge Band Application
Pressure rollers apply the edge material to the prepared panel edge.
End Sawing
Front and rear end saws process the beginning and end of the applied edge.
Servo Fine Trimming
Servo-driven fine trimming units process the upper and lower edge profile.
Twin Corner Rounding
Twin servo corner rounding stations process panel corners automatically.
Scraping & Cleaning
Round scrapers, glue scrapers and cleaning spray systems refine the finished edge.
Final Buffing
Buffing units provide the final finishing stage for a clean professional appearance.
NikMann-2RTF CNC Technical Specifications
The exact machine configuration can vary depending on production requirements and selected options. Contact Forza Machinery for the current machine specification.
| Machine | NikMann-2RTF CNC |
|---|---|
| Machine Type | Automatic CNC Edge Bander |
| Application | Panel Edge Banding |
| Control System | CNC controlled |
| Front Spray Station | Yes |
| Pre-Milling | Yes |
| Infrared Light | Yes |
| Glue System | EVA or PUR Hot-melt adhesive system |
| Edge Application | Automatic |
| End Trimming | Automatic |
| Fine Trimming with a Nesting Kit | Yes |
| Corner Rounding | Twin corner rounding system |
| Profile Scraping with a Nesting Kit | Yes |
| Glue Scraping with a Nesting Kit | Yes |
| Back Spray Station | Yes |
| Buffing | Yes |
| Panel Length: | ≥100 mm; |
| Panel Thickness: | 10~60 mm; |
| Feed Speed | 12 - 18 m/min; |
| Dimensions: | 5500 × 1440 × 1730 mm; |
| Price | $95,000 + GST |
Delivery, installation and operator training are excluded from the listed price. Machine configuration and availability should be confirmed with Forza Machinery before ordering.
Designed for Professional Woodworking Production
The NikMann-2RTF-CNC is suited to businesses requiring automated and repeatable edge finishing.
Cabinet Manufacturing
Professional edge finishing for kitchen, bathroom and built-in cabinetry production.
Furniture Manufacturing
Consistent edge processing for furniture panels and components.
Joinery Workshops
Suitable for joinery businesses requiring reliable automated edge banding.
Shopfitting
Efficient finishing for commercial furniture, counters and shopfitting components.
High-Volume Production
Automated processing designed to support demanding production environments.
Panel Furniture
Edge processing for suitable MDF, plywood, melamine and other wood-based panels.
Built Around Production Efficiency
A fully automatic configuration can reduce operator intervention while maintaining a consistent edge finishing process.
Automated Control
CNC control provides programmable machine operation and adjustment.
Twin Corner Rounders
Two servo-driven corner rounding stations improve automated corner processing.
Servo Technology
Servo-driven stations provide controlled positioning and adjustment.
Complete Finishing
Trimming, scraping, cleaning and buffing complete the automated finishing process.
