RELIABLE, FAST AND FLEXIBLE SERVICES

The belt sander is decisive for the high quality appearance of your furniture. By concentrating on essentials, NikMann belt sander  combine compact design with maximum automation.

This is why we always offers the perfect solution of every edge belt sander to ensure superior face appearance. Continuous development work on every edge belt sander guarantees our customers maximum process reliability and maximises their competitive ability.

NikMann edge sanders

Edge Sanders NikMann Series

The NikMann KSM-3000 is a multi-function woodworking machine that combines essential woodworking operations into a single, compact unit.

NikMann KSM series

  • Strong machines body, with construction against torsion and vibrations- extremely stable.

  • NikMann's belt sanders are European made, heavy duty edge sanding machines.
  • Sanding assembly tilting to 45°. Oscillation for the sanding assembly with separate gear motor.
  • Height adjustable working table to use full width of belt. Additional table, movable by height with aspiration – for radius sanding.
  • Belt tension with tighten springs for automatic compensation of length tolerance.

This integrated design allows workshop operators to switch between functions quickly and safely while maintaining professional-grade accuracy.

Technical Data:

STANDARD PERFORMANCEKSM-2600

Working table dimensions, mm750 x 300
Table height adjustment, mm200
Length of the belt, mm2600
Belt width, mm150
Sanding table (under the belt), mm850 x 200
Belt speed, m/s20
Oscillation movement, mm20
Oscillation motor, kW (HP)0.25 (0.34)
Revolutions, min2840
Required area, mm1600 x 850 x 1350
Motor power, kW (HP)3.0 (4.0)
Weight, kg180

O P T I O N S:
Extension of the table with rollers
Miter fence
Rubberized roller
Wheel set
STANDARD PERFORMANCEKSM 3000KSM 3000S

Working table dimensions, mm960 x 350960 x 350
Table height adjustment, mm230230
Length of the belt, mm30003000
Belt width, mm150200
Sanding table, mm1050 x 2001050 x 200
Belt speed, m/s2020
Oscillation movement, mm 2020
Oscillation motor, kW (HP)0.25 (0.34)0.25 (0.34)
Revolutions, min28402840
Required area, mm1900 x 900 x 12501900 x 900 x 1300
Motor power, kW (HP)3.0 (4.0)3.0 (4.0)
Weight, kg400450

O P T I O N S:
Extension of the table with rollers
Miter fence
Support for feeder
Device “Rotating star with 3 feeding rolls” (only for KSM 3000)
Rubberized roller
Wheel set

Machine Configuration:

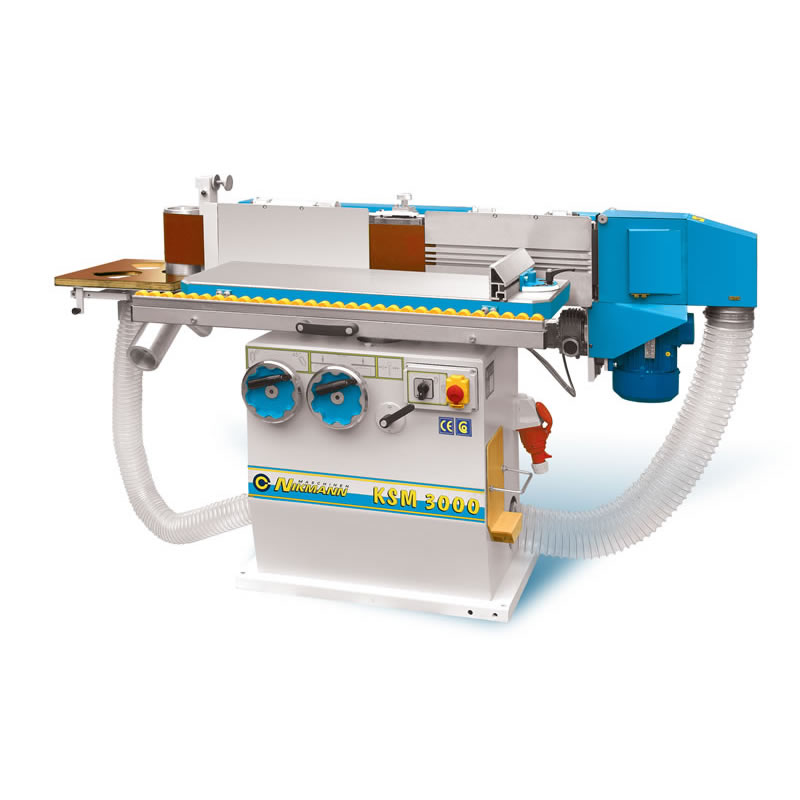

edge sanders NikMann KSM-3000
NikMann KSM-3000

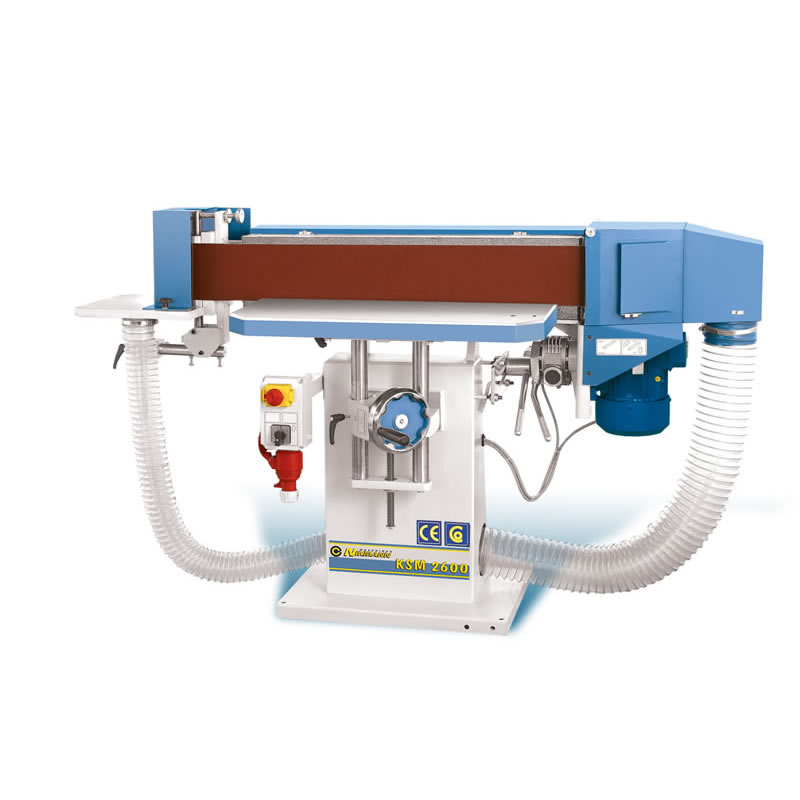

edge sanders NikMann KSM-2600
NikMann KSM-2600
edge sanders NikMann

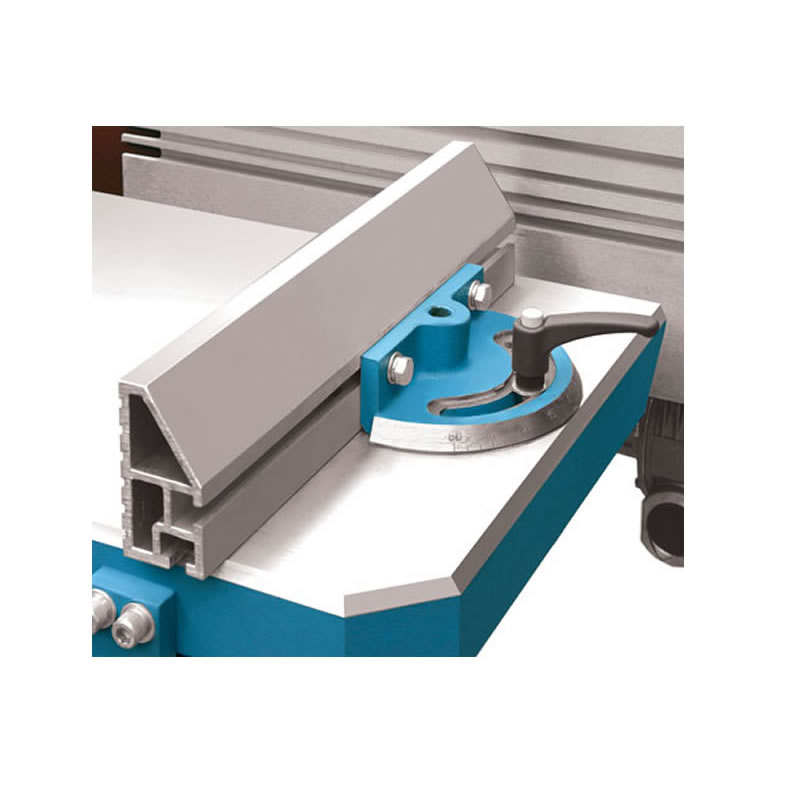

Mitre Fence
edge sanders NikMann
Idle Roller
edge sanders NikMann
Support bar
edge sanders NikMann
Revolver with multiple rollers
