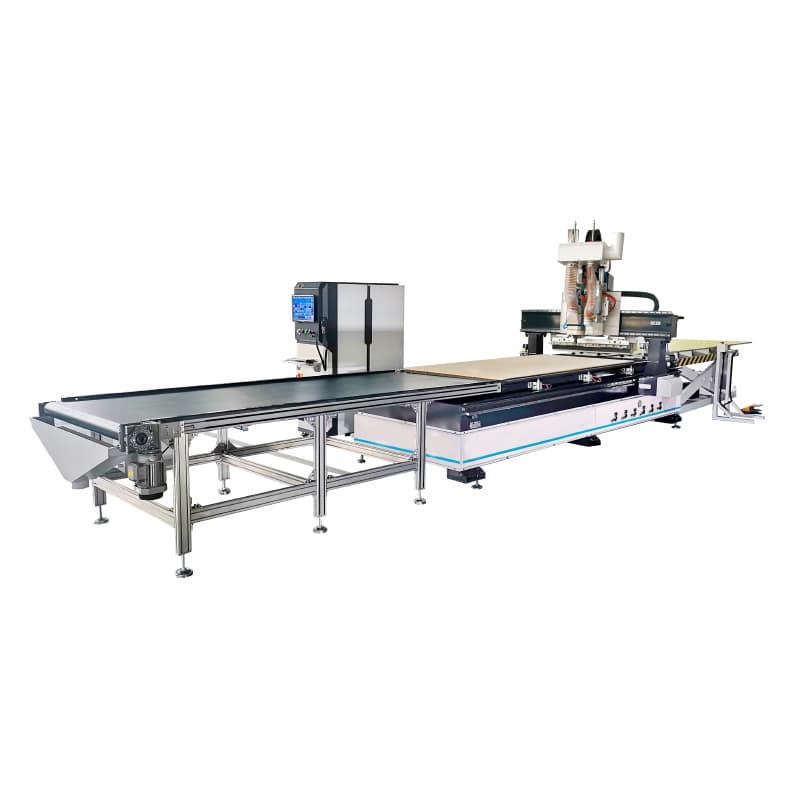

NikMann-3618 Automated CNC Nesting Machine
Explore the NikMann-3618 automated CNC nesting machine with loading and unloading, 3640 × 1820 mm table, automatic tool changing and drilling.
A High-Productivity CNC Nesting Solution for Large-Format Panel Production
The NikMann-3618 is an automated CNC nesting machine designed for woodworking businesses seeking efficient, computer-controlled panel processing with integrated loading and unloading equipment.
With a 3640 × 1820 mm table, a 9.0 kW Italian electro spindle, a 12-position automatic tool magazine and a 10-spindle drilling head, the NikMann-3618 brings key machining operations together in one production system.
The integrated loading lift and unloading table are designed to support material handling around the machining process, making this machine a potential fit for cabinet manufacturers, furniture producers, commercial joinery businesses and larger panel-processing operations.
Why consider an automated nesting CNC machine?
Automating material loading, CNC machining and unloading can help reduce repetitive manual handling and support a more organised production workflow. The benefits for your workshop will depend on panel types, job scheduling, staffing, software and the way the machine is integrated into your production line.
The NikMann-3618 is designed for businesses that need a larger working area and a higher level of material-handling automation than a standard entry-level nesting CNC configuration.
REQUEST A QUOTEDesigned for Integrated Panel Processing
Key components support programmed machining and material handling within one production setup.
SOFTWARE INTERFACE
Syntec controller works with absolute servo, so after switch on machine, you can run program directly, no need to home all axes.
SPINDLE & DRILL HEAD
Machine is equipped with Italian HSD-9kW Electro Spindle and 10 drills on a Drill Head.
AUTOMATIC TOOL CHANGER
The 12-position linear tool magazine accommodates compatible tools for programmed machining operations.
9.0 KW ITALIAN SPINDLE
The air-cooled ISO-30 spindle has a published maximum speed of 24,000 rpm.
LARGE-FORMAT TABLE
The published 3640 × 1820 mm table supports nesting layouts for suitable large-format sheet materials.
VACUUM PUMP
A powerful 5.5kw pump delivers 250 m3/h and delivers maximum vacuum evenly across the selected table area.
AUTO MEASUMENT TOOL
Automatic device for tool length measurement for more precise cutting and drilling.
10-SPINDLE DRILLING HEAD
The drilling head supports drilling tasks commonly required for cabinetry, furniture and joinery components.
AUTO LUBRICATION
The bearings are automatically lubricated from a centralised lubrication system in X and Y.
REMOTE CONTROL
Magnetic hand control makes machine and tools setups simple and easy for the operator.
DRILL HEAD CONFIGURATION
A powerful and versatile boring head with 10 drills, ideal for precise and efficient woodworking applications.
ISO-30 TOOLS
This ISO-30 electro spindle is designed for high-precision machining and efficient tool changes, making it an excellent choice for CNC applications in woodworking and beyond.
UNLOADING PUSHER
Auxiliary panels unloading unit allows the machined pieces to be taken off the working table that will then be cleaned by the suction device.
HYDRAULIC LIFTING TABLE
Combined with the standard auto loading and alignment system, you now have a fully automated panel loading solution.
UNLOADING CONVEYOR
Panels are presented at the end of the table for unloading, ensuring they never outpace the operator.
From Sheet Loading to Finished Components
The NikMann-3618 combines material handling and CNC machining into a coordinated workflow for suitable panel production jobs.
Automatic Panel Loading
The loading lift supports the movement of sheet material into the machining workflow. Confirm loading procedures and material compatibility for your production setup.
Prepare the CNC Job
Use compatible CAD/CAM software to prepare nesting layouts, routing paths and drilling operations for the required components.
Cut, Route and Drill
The CNC system carries out programmed machining operations using suitable tooling, the electro spindle and the integrated drilling head.
Move Components to the Next Stage
The unloading table supports material handling after machining. Completed parts can then be checked and moved to the next production operation.
NikMann-3618 Technical Specifications
The following details are based on the published machine configuration. Contact Forza Machinery to confirm the current specification, site requirements and available options.
| Machine | NikMann-3618 |
|---|---|
| Machine Type | Automated CNC Nesting Router |
| Application | Panel Nesting, CNC Routing, Cutting and Drilling |
| Table Size X-Y | 3640 × 1820 mm |
| X-Y-Z Travel Speed | 60 / 60 / 20 m/min |
| Electro Spindle | Italian electro spindle, ISO-30 |
| Spindle Power | 9.0 kW |
| Maximum Spindle Speed | 24,000 rpm |
| Spindle Cooling | Air cooled |
| Drilling Head | 10 spindles |
| Linear Tool Magazine | 12 positions |
| Vacuum Pumps | 2 × 250 m³/h published capacity |
| Vacuum Table | Double-layer PVC nesting table |
| CNC Controller | Syntec |
| Servo Motors and Drivers | Syntec, 1 kW published configuration |
| Inverter | 11 kW |
| Transmission | Helical rack and pinion with planetary reducer |
| Automatic Lubrication | Included in published configuration |
| Automatic Loading | Loading lift included |
| Unloading | Unloading table included |
| Tool Sensor | Auto tool sensor and tool measuring sensor included |
| Safety Equipment | Safety fence and light curtains included |
| Machine Dimensions | 15,000 × 3,500 mm (published) |
| Listed Price | $100,000 + GST |
Delivery, installation and operator training are excluded from the listed price. Confirm the machine footprint, required clearances, electrical supply, dust extraction, loading and unloading arrangements, current pricing and availability with Forza Machinery before ordering.
REQUEST CURRENT PRICINGWho Is the NikMann-3618 Designed For?
An automated CNC nesting solution for woodworking businesses processing larger panels and seeking to improve material-handling workflows.
Cabinet Manufacturers
Process suitable kitchen, wardrobe, bathroom and built-in cabinetry panels using programmed cutting and drilling operations.
Furniture Manufacturers
Machine suitable furniture panels and components with repeatable CNC programs and integrated material handling.
Commercial Joinery
Support production of panels and components for commercial interiors, office fit-outs and custom joinery projects.
Shopfitting Businesses
Process components for counters, display units, retail fixtures and commercial cabinetry.
Large-Format Panel Processing
The published 3640 × 1820 mm table size supports larger-format nesting jobs within the machine's usable working area and material limits.
Production Workshops
Consider integrated loading and unloading when planning a workflow that aims to reduce repetitive manual material handling.
More Automation. Larger Panels. Integrated CNC Production.
The NikMann-3618 combines a large-format nesting table with automatic material handling and multi-operation CNC capability.
Integrated Loading and Unloading
The included loading lift and unloading table support material movement around the machining process and can help reduce repetitive manual handling.
Large Working Format
The 3640 × 1820 mm table provides a larger format than the NikMann-2412, making it worth considering for compatible larger-panel production.
Automatic Tool Changing and Drilling
The 12-position tool magazine and 10-spindle drilling head support programmed machining jobs involving multiple tools and drilling operations.
Production-Focused Configuration
The vacuum table, Syntec control, automatic lubrication and dust extraction hood are designed to support professional CNC woodworking workflows.
Your NikMann-3618 Is Supported by Forza Machinery
Investing in an automated CNC nesting machine involves more than choosing the right specifications. Your equipment needs to suit your materials, production volumes, available workshop space, software and material-handling workflow.
Forza Machinery is based in Pakenham, Victoria, and supports woodworking businesses in Melbourne, regional Victoria and throughout Australia. Speak with our team about the NikMann-3618k and the requirements for integrating it into your workshop.
- Machine selection and application advice
- Production workflow assessment
- Delivery coordination
- Installation and commissioning arrangements
- Operator training
- Preventive maintenance
- CNC servicing and repairs
- Technical support and spare parts assistance
Is the NikMann-3618 the Right CNC Machine for You?
Compare the NikMann-3618 with the NikMann-2412 to identify the right working area and automation level for your production requirements.
NikMann-3618
A large-format nesting CNC configuration with a 3640 × 1820 mm table, loading lift and unloading table for production-focused operations.
View NikMann-3618 →
NikMann-2412
A more compact nesting CNC configuration with a published 2420 × 1220 mm cutting capacity and a 12-position automatic tool magazine.
View NikMann-2412 →
Explore CNC Solutions
Discuss your materials, working area, automation needs, workshop space and expected production volume with Forza Machinery.
Explore CNC Machines →Frequently Asked Questions
Answers to common questions about the NikMann-3618k automated CNC nesting machine.
What is the NikMann-3618 CNC nesting machine?
What is the table size of the NikMann-3618?
Does the NikMann-3618k include automatic loading and unloading?
What spindle is fitted to the NikMann-3618?
Does the NikMann-3618k have an automatic tool changer?
Does the NikMann-3618 include a drilling head?
What vacuum system does the NikMann-3618 use?
What materials can the NikMann-3618 process?
How much does the NikMann-3618k cost in Australia?
How does the NikMann-3618 compare with the NikMann-2412?
Does Forza Machinery provide installation and after-sales support?
