⚠️ ALARM-1 Motor Overheat Protection

🔍 What the Alarm Means:

• PTC sensors are built into motors to monitor their temperature.

• If the motor exceeds a safe temperature threshold, the PLC (Vision controller programmed in VisiLogic) detects the high resistance from the PTC and triggers Alarm 1.

• This prevents damage to the motor by stopping operation until it cools down or the issue is resolved.

  ✅ How to Troubleshoot & Reset Alarm - 1:

  1.Let the Motor Cool Down

  • Power off the machine and allow the motor to cool for at least 15–30 minutes.

  • Check if the ambient temperature or duty cycle is too high.

  2.Check for Mechanical Blockage or Overload

  • Inspect the motor connected to the alarm (e.g., glue unit, milling, trimming motor).

  • Look for signs of:

    • Jammed tooling

    • Binding bearings

    • Glue buildup

    • Over-tensioned belts or feed chains

  3.Inspect Cooling Fans and Airflow

  • Ensure cooling fans are working and air inlets are not blocked by dust or debris.

  4.Check the Motor’s Power Supply

  • Fluctuations or drops in voltage can lead to motor overheating.

  • Check connections for looseness or signs of arcing.

  5.Read the Alarm via the HMI (Vision Controller)

  • Navigate to the alarm log or diagnostics page on the integrated HMI panel.

  • Identify which motor triggered the PTC alarm.

  6.Reset the Alarm

  • Once the cause is corrected and the motor has cooled:

    • Use the HMI to acknowledge or reset the alarm.

    • Some models require power cycling the machine to fully clear the error.

  🧰 Preventative Tips:

  • Perform regular cleaning and motor maintenance.

  • Avoid excessive load or extended continuous use beyond rated capacity.

  • Ensure proper ventilation inside the electrical cabinet and motor covers.

  • Keep the machine in a temperature-controlled environment if possible.



  STEP 1

  Alarm-1 | Motor PTC overheat protection

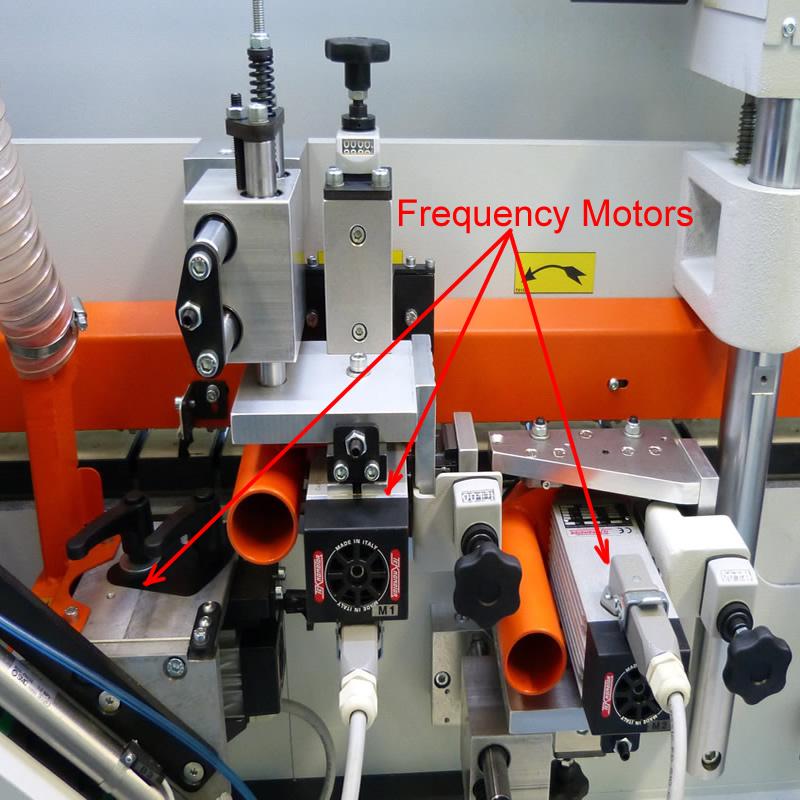

  Overload in one or more frequency inverters. It is possible to overheat some of the frequency motors or overloads.



  STEP 2

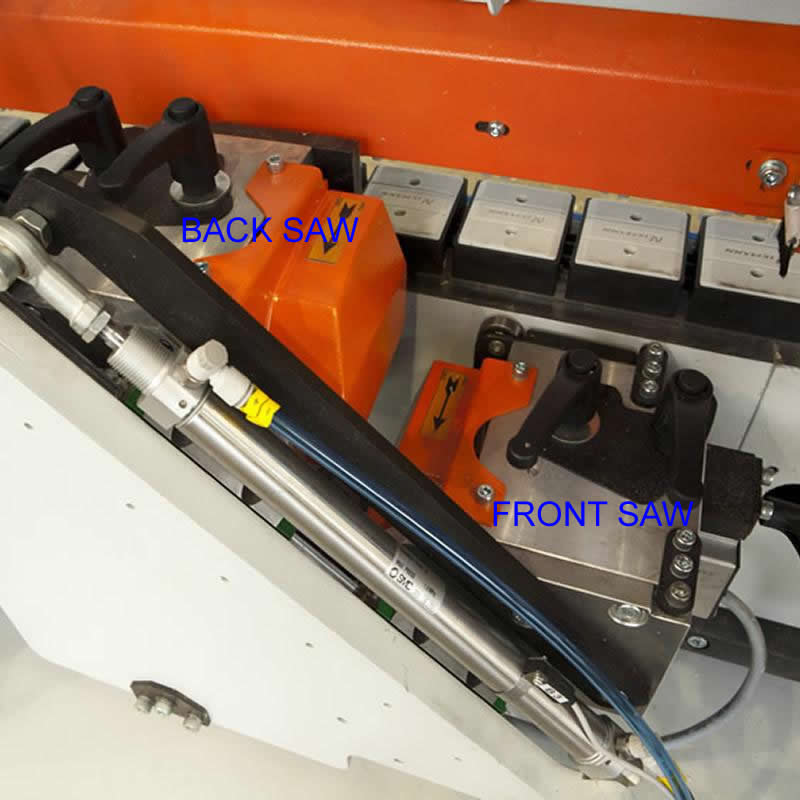

  Some of the Front or Back END SAW motors are overheated.

  Check if any of the END SAW motors are hot and not turning. Clean Up blades.



  STEP 3

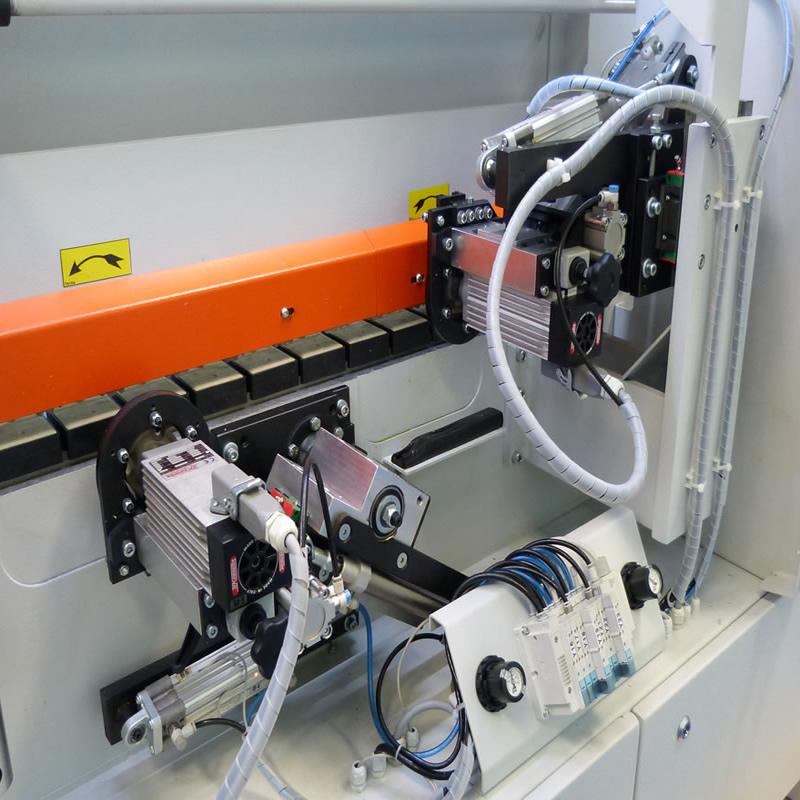

  Some of the FINE TRIMMING motors are overheated.

  Clean Up machine's frequency motors and check them for free rotation. If one of them not rotating , please call 1300 4 Forza.

  ---

  Why Choose Forza Machinery?

  We provide high-quality European woodworking machinery, professional technical support and reliable after-sales service.

  🏆

  25+ Years Experience

  Trusted woodworking machinery supplier servicing workshops across Victoria.

  ⚙️

  European Machinery

  Premium machinery engineered for production efficiency, precision and durability.

  🛠️

  Technical Support

  Professional installation, servicing, spare parts and technical support Australia wide.

  🚚

  Australia Wide

  Fast delivery and workshop setup solutions throughout Victoria, Australia.

  👉 We don’t just sell machines — we help keep your business running.

  Call 1300 4 FORZA

  ---



  STEP 4

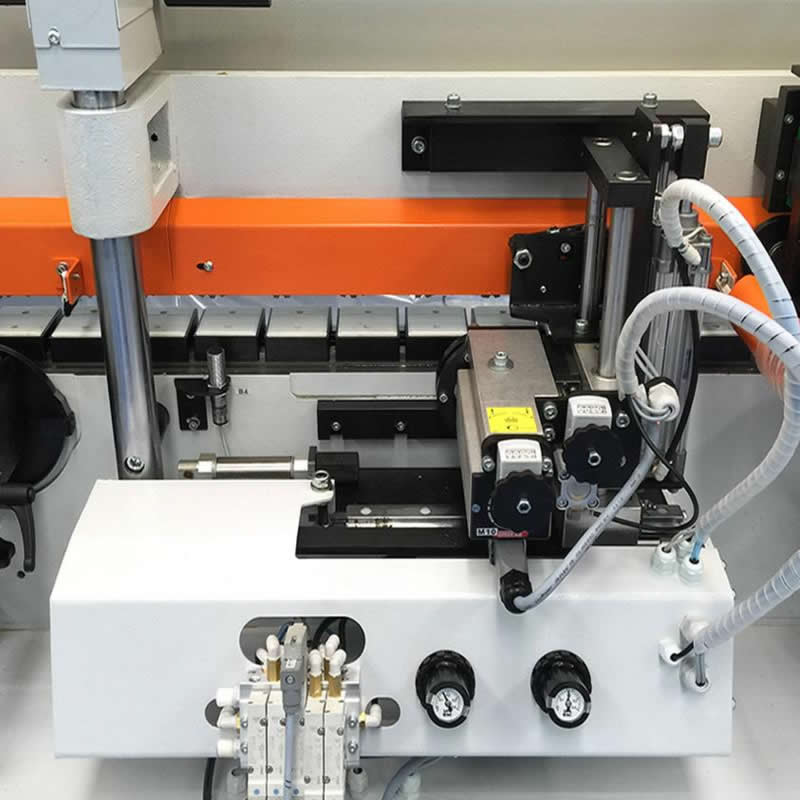

  Some of the CORNER ROUNDER motor is overheated.

  Check if any of the CORNER ROUNDER motor is hot and not turning. Clean Up blades.



  STEP 5

  Some of the CORNER ROUNDER motors are overheated.

  Check if any of the CORNER ROUNDER motors are hot and not turning. Clean Up blades.



  STEP 6

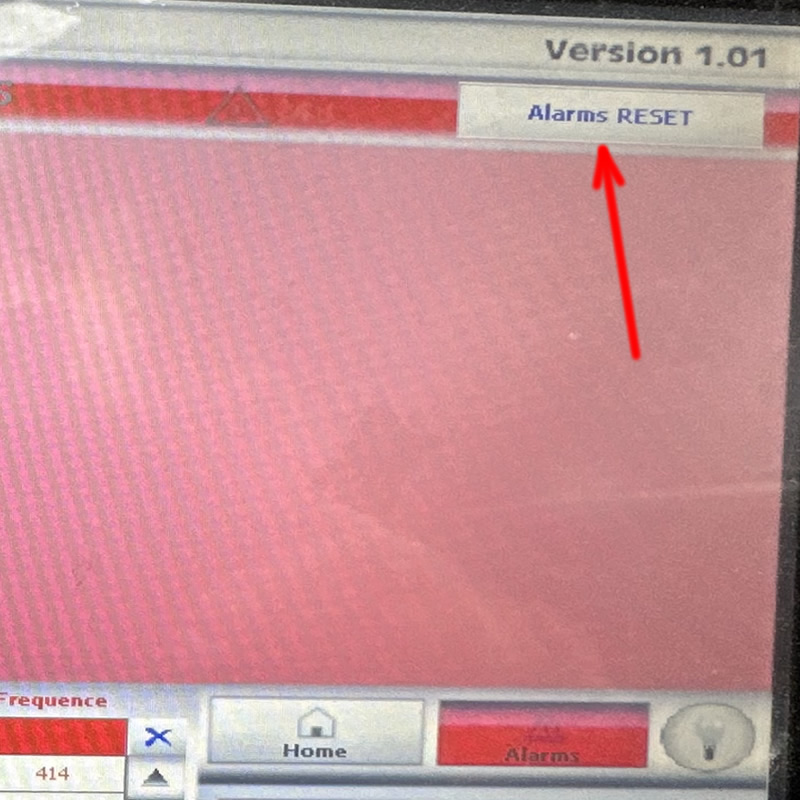

  Reset ALARMS by pressing the button on a screen.

  If your machine still have a problem , please call : 1300 4 FORZA
