Alarm-12 on a NikMann edgebander indicates that the rear end trimming saw has failed to return to its home position within the expected time. This safety alarm prevents machine damage and ensures reliable operation by stopping production until the fault is resolved.
What Causes Alarm-12?
Several factors can trigger Alarm-12, including:
- Dust, wood chips, or glue build-up restricting movement
- Worn or damaged mechanical components
- Insufficient lubrication of guide rails and bearings
- Low air pressure or pneumatic system faults
- Faulty position sensors or limit switches
- Obstructions preventing the saw unit from moving freely
- Misalignment of the trimming saw assembly
How to Troubleshoot Alarm-12
1. Switch Off the Machine Safely
Before inspecting the machine, turn off the power and ensure all moving components have completely stopped.

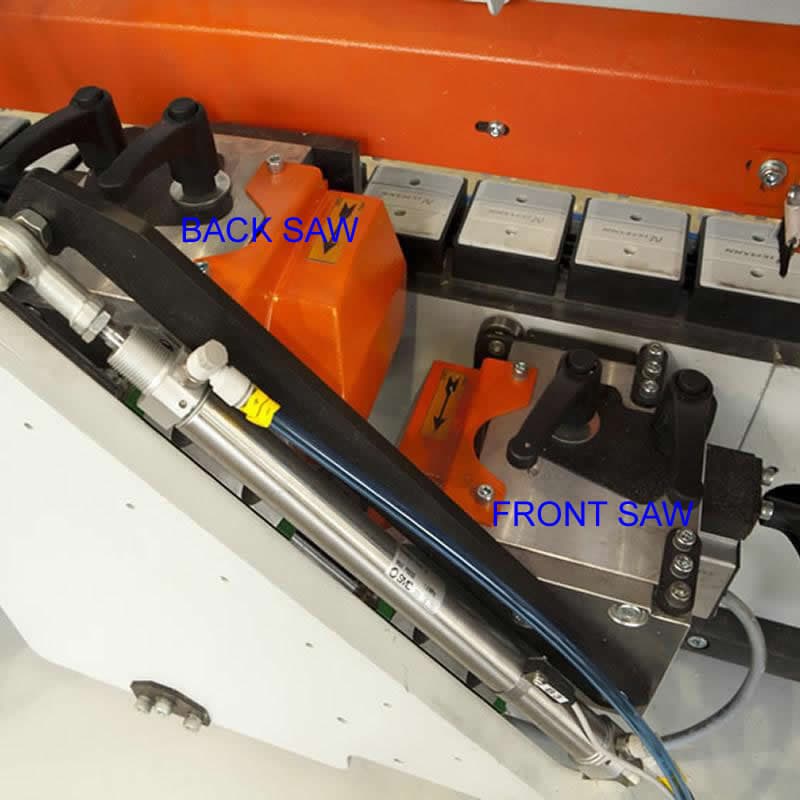

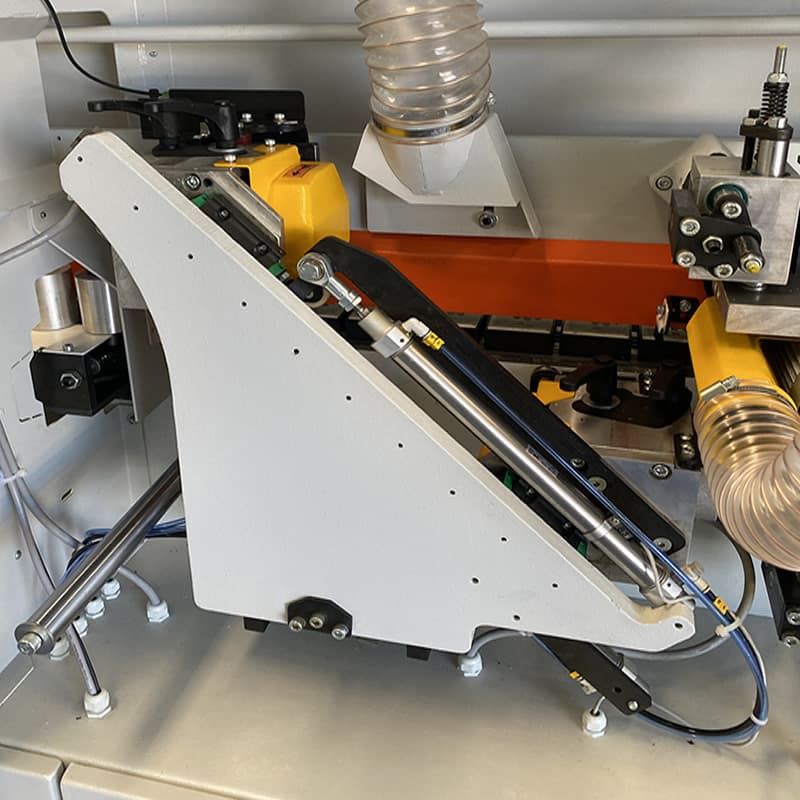

2. Inspect the Rear End Trimming Unit
Check the trimming saw assembly for:
- Wood dust accumulation
- Glue residue
- Damaged components
- Physical obstructions
3. Check Guide Rails and Bearings
Inspect guide rails, linear bearings, and moving parts for wear or contamination. Clean and lubricate as required to ensure smooth operation.

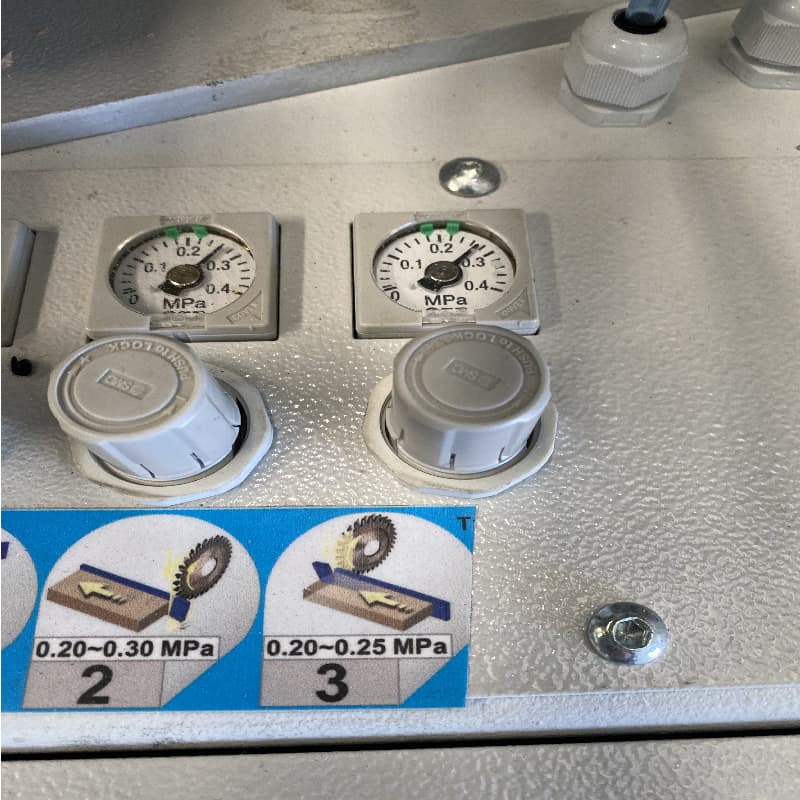

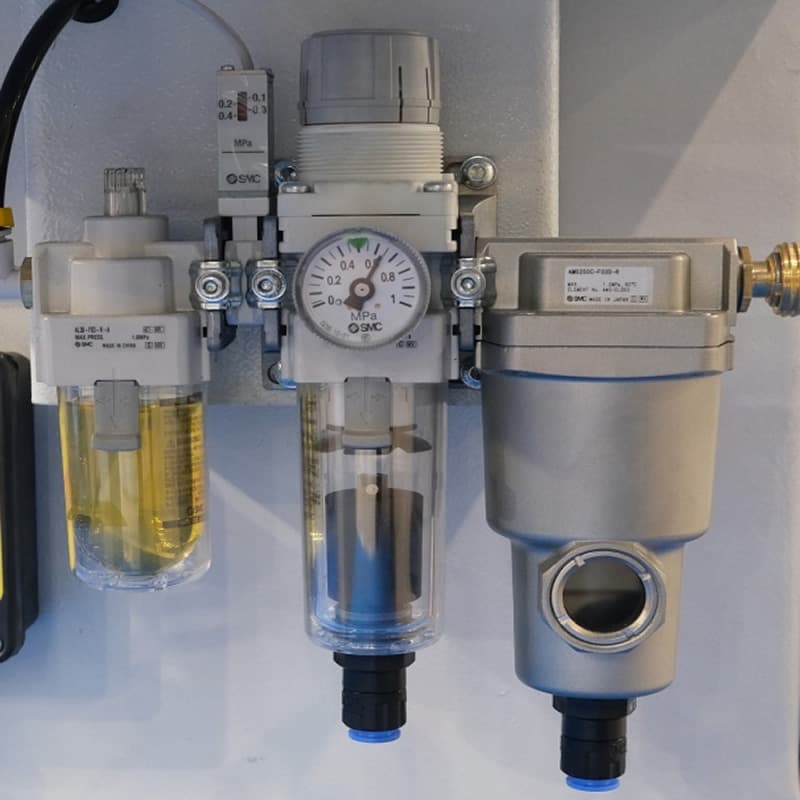

4. Verify Air Supply
If the trimming unit operates pneumatically:
- Check air pressure levels
- Inspect air hoses and fittings for leaks
- Verify pneumatic cylinder operation

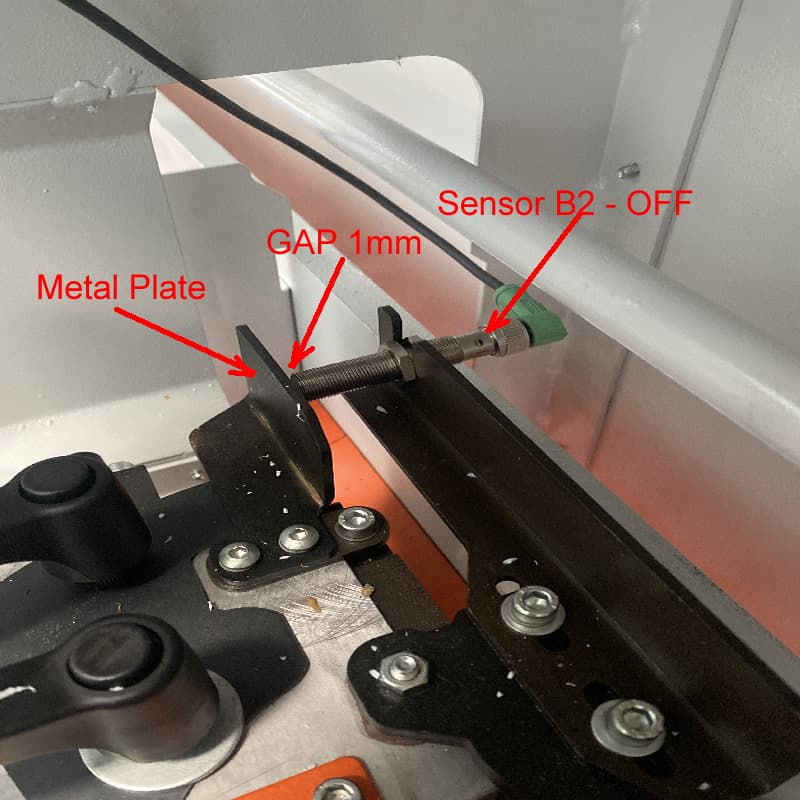

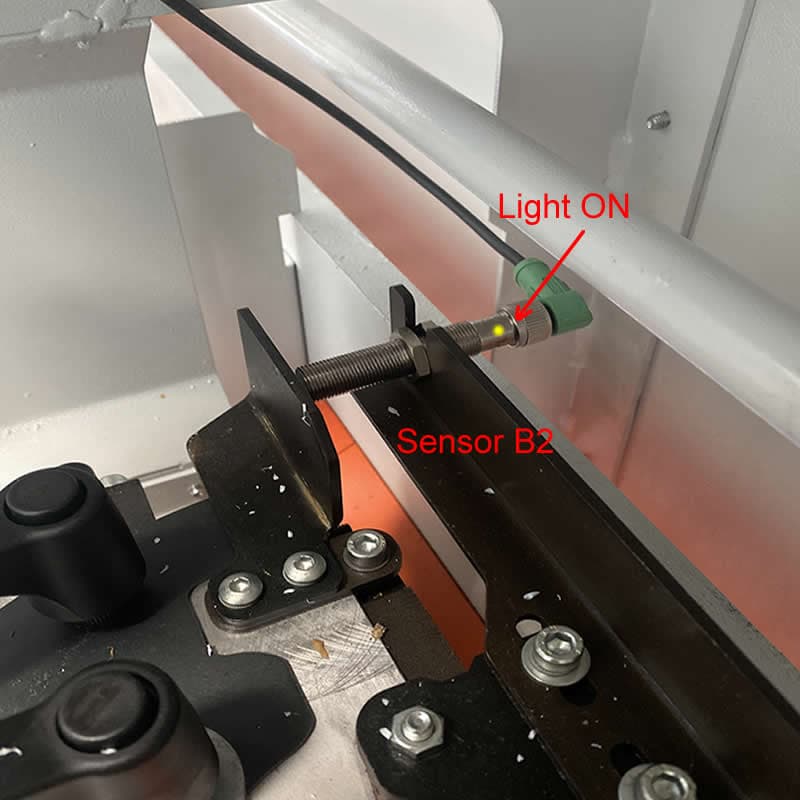

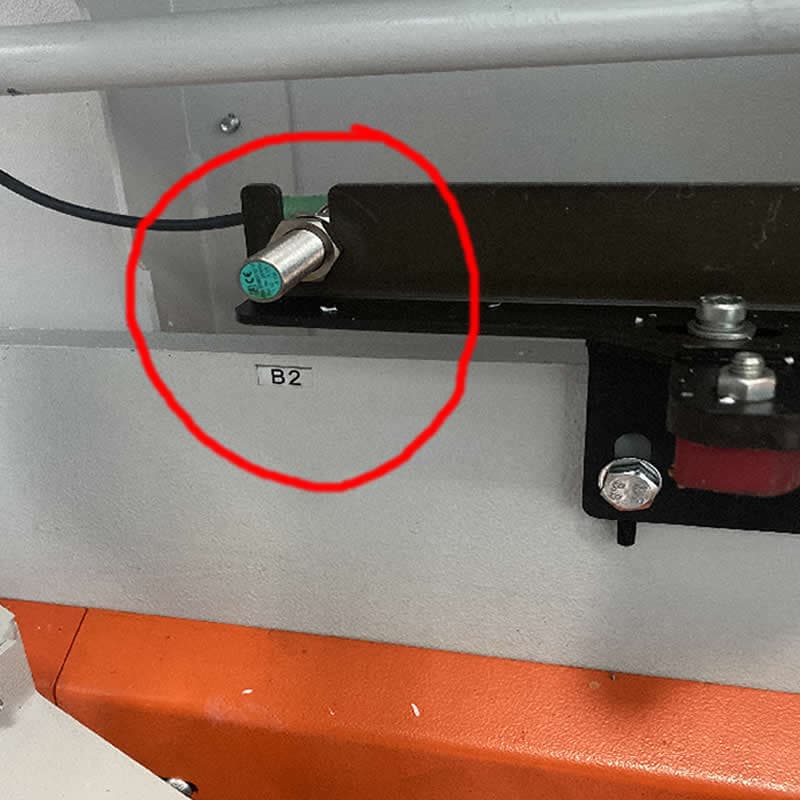

5. Inspect Sensors and Limit Switches
Ensure all sensors and limit switches are clean, correctly aligned, and functioning properly. A faulty sensor may prevent the controller from detecting the home position.
6. Check Manual Movement
With power isolated and following proper safety procedures, manually move the trimming unit to confirm there is no excessive resistance or binding.

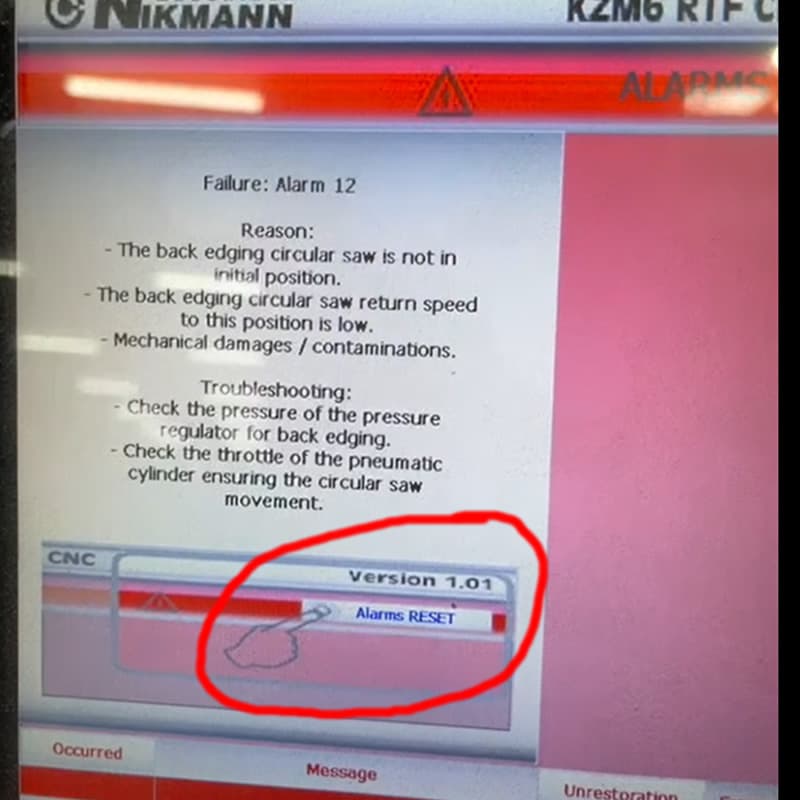

7. Reset the Alarm
After completing repairs:
- Restart the machine.
- Clear Alarm-12 from the control panel.
- Run a test cycle.
- Verify that the trimming saw returns correctly to its home position.
Preventive Maintenance
Regular maintenance can significantly reduce the likelihood of Alarm-12 occurring.
- Clean the trimming unit daily
- Remove glue and dust build-up regularly
- Lubricate guide rails according to the maintenance schedule
- Inspect pneumatic components for leaks
- Check sensor alignment during routine servicing
- Replace worn bearings and moving parts before failure occurs
