Combination Machines

Compact European Multi-Function Woodworking Solution

The NikMann-CU Combination Woodworking Machine is a versatile, space-saving solution designed for professional woodworking workshops that require multiple machining functions without sacrificing accuracy or performance. Built to European standards, the NikMann-CU combines essential woodworking operations into one robust and reliable machine—ideal for cabinet makers, joinery shops, furniture manufacturers, and training facilities across Australia.

Engineered for precision, durability, and ease of use, the NikMann-CU delivers consistent results across a wide range of woodworking applications.

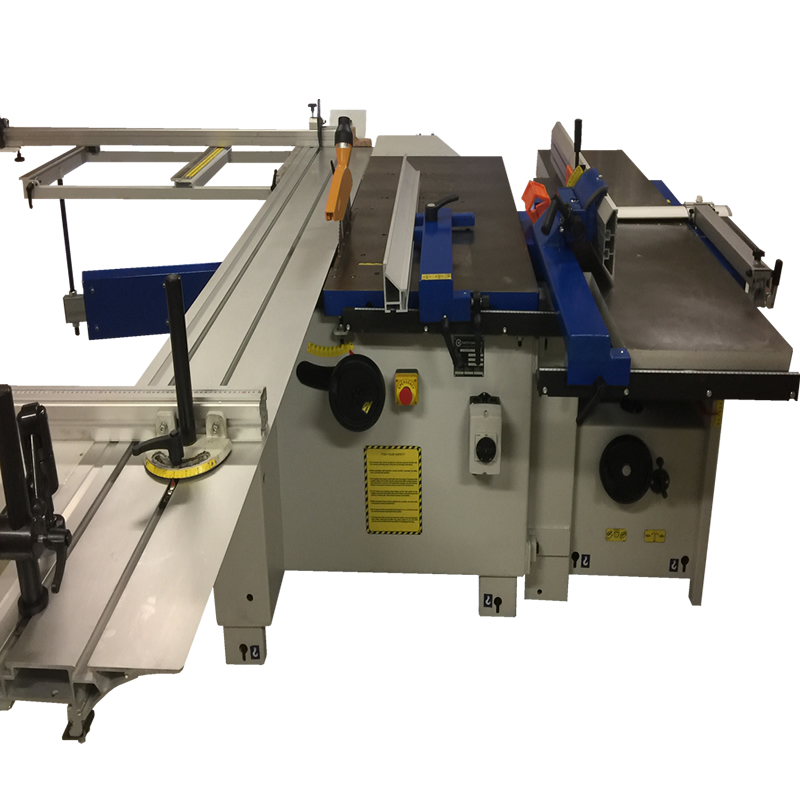

Overview of the NikMann-CU Combination Machine

The NikMann-CU is a multi-function combination woodworking machine designed to perform several core woodworking tasks from a single unit, reducing workshop footprint and overall equipment costs.

Typical functions include:

• Surface planing

• Thicknessing

• Circular sawing

• Spindle moulding / shaping

• Mortising (on selected models)

This integrated design allows operators to switch between functions efficiently while maintaining high levels of accuracy and safety.

Technical Data:

MODEL	CU-320-N2	CU-410-N2

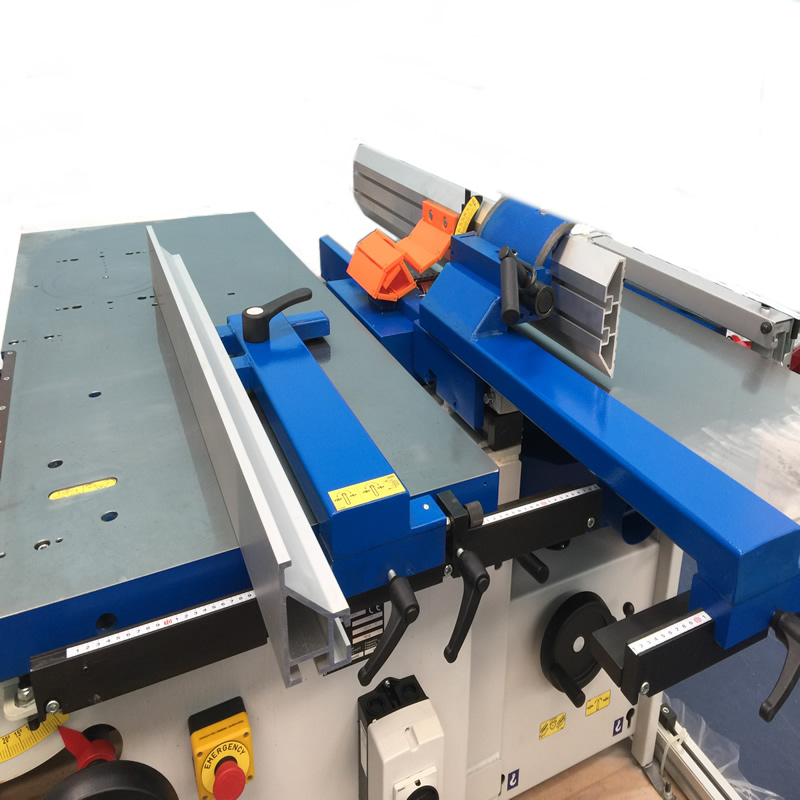

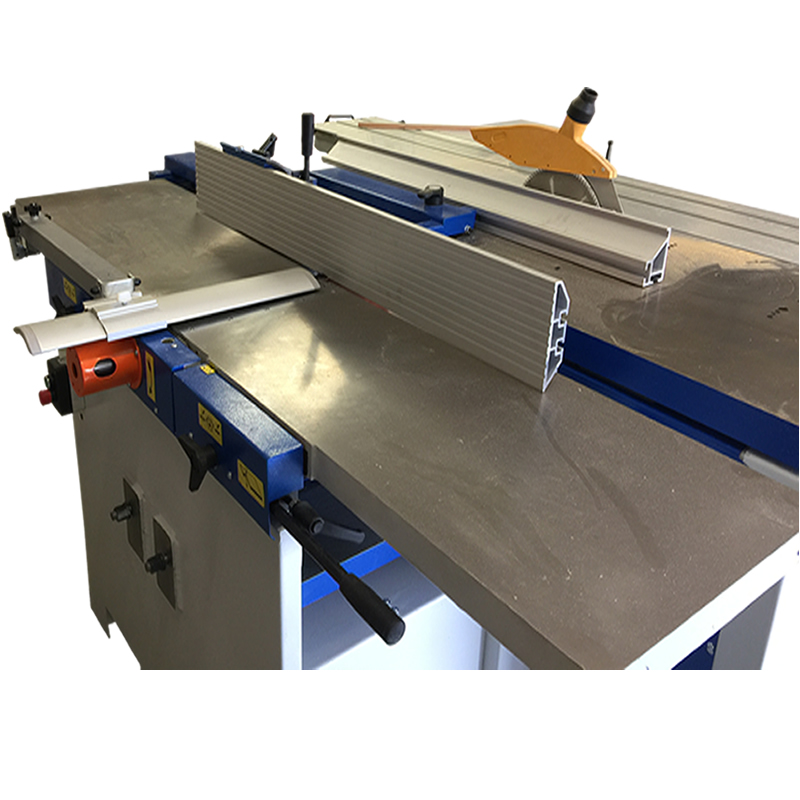

SURFACE PLANER
Working table dimensions, mm	1500 x 320	1800 x 410
Support fence dimensions, mm	1100 x 155	1100 x 155
Tilting of support fence	0 - 45	0 - 45
Diameter of the cutter block, mm	100	100
Number of cutters	3	4

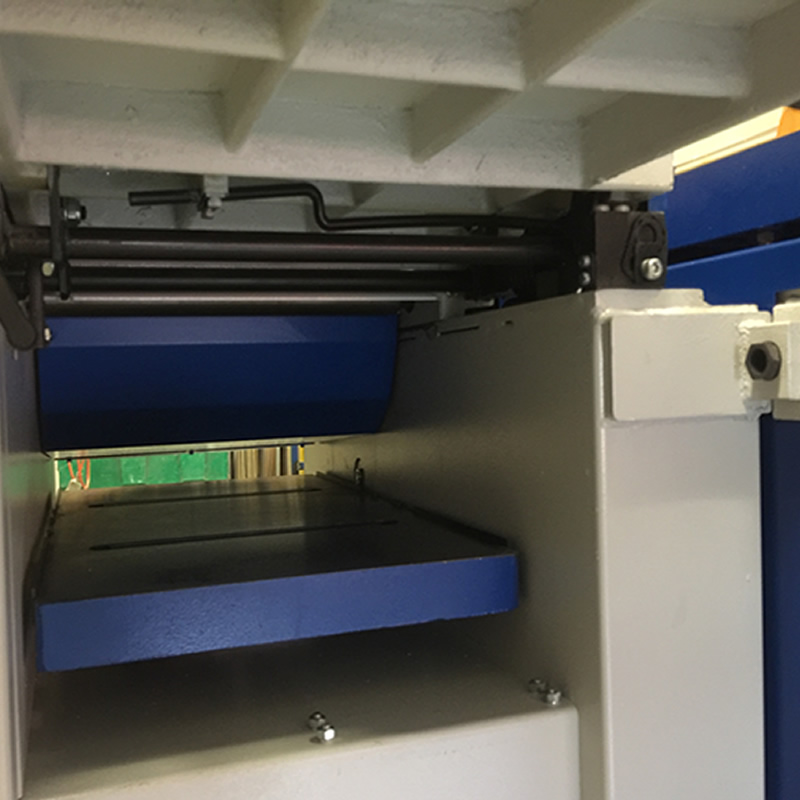

THICKNESSING PLANER
Working table dimensions, mm	700 x 316	700 x 406
Max depth of cut, mm	4	4
Feeding Speed, m/min	8	8
Thickness of the detail, min-max, mm	4-225	4-225
Motor power, kw	3.0	3.0

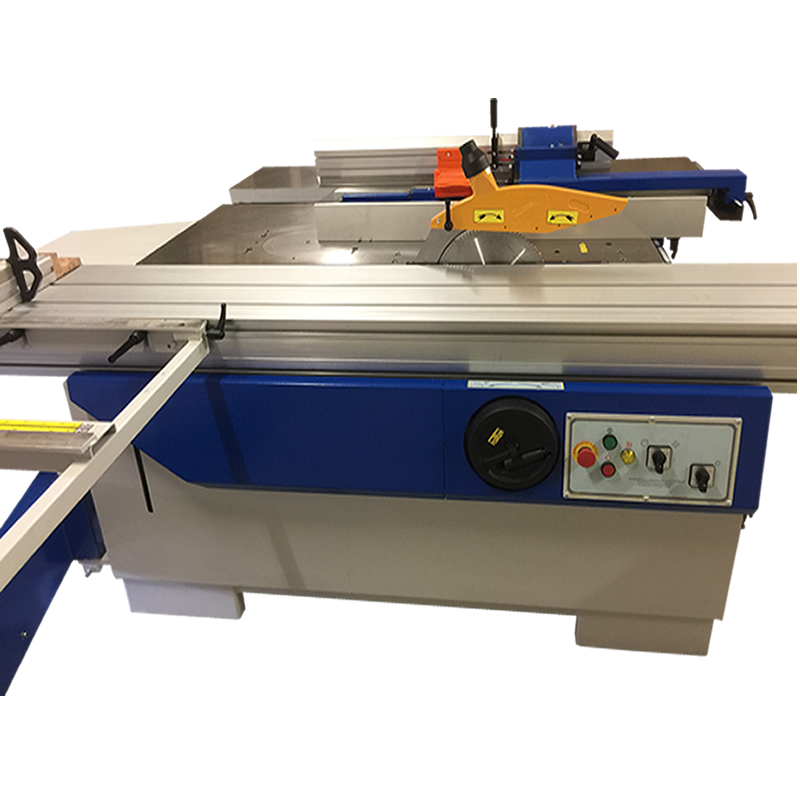

PANEL SAW
Saw blade diameter, max/min	315/250	315/250
Spindle diameter, mm	30	30
Spindle speed	4000	4000
Length of parallel fence	1100	1100
Tilting of circular blade	0-45	0-45
SPINDLE MOULDER
Spindle Diameter, mm	30	30
Spindle tilting back	90-0-45	90-0-45
Vertical movement of the spindle, mm	175	175
Working height of the spindle, mm	125	125
Spindle with MORSE cone for changeable arbor	MK4	MK4
Distance between front part of the table and spindle,mm	550	550
Diameter of the openings in a working table, mm	260	260
Motor power,kw	3.2	3.2
MORTISER
Maximal diameter for boring instrument, mm	16	16
Dimension of working table,mm	250 x 370	250 x 370
Longitudinal stroke,mm	160	160
Transversal stroke,mm	160	160
Vertical stroke,mm	120	120
GENERAL DIMENSIONS
Length,mm	2500	2500
Width,mm	2900	2900
Height to the working table,mm	850<	850
Dimension of working table,mm	1450 x 650	1450 x 650
Dimension of sliding table,mm	2300 x 350	2300 x 350
OPTIONS
Scoring unit with:	optional	optional
Saw blade diameter,mm	120	120
Spindle diameter,mm	20	20
Motor power,kw	0.55	0.55

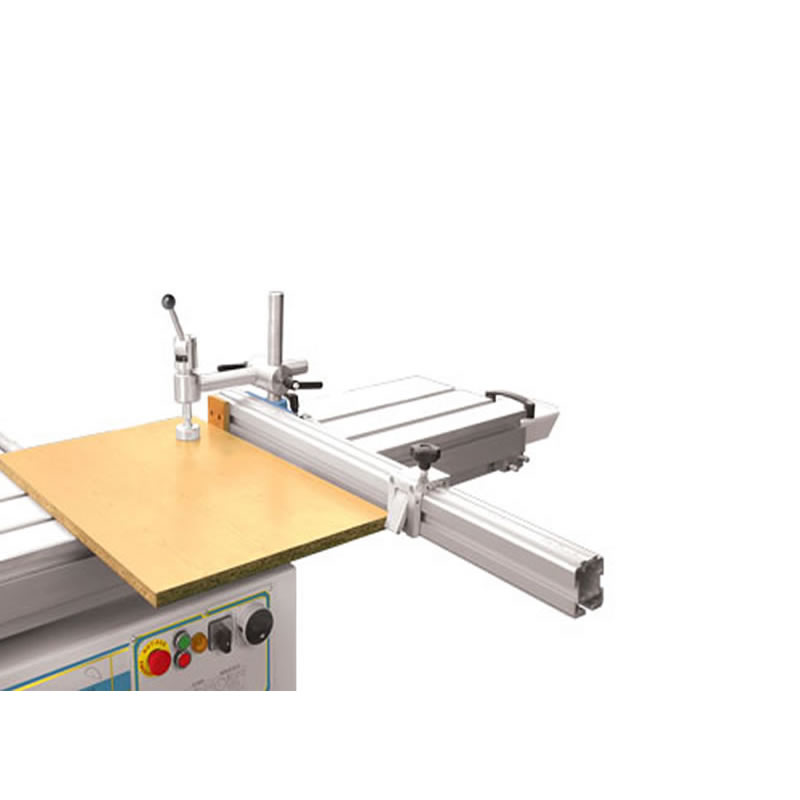

Miter gauge without extensions	600,900,1219	600,900,1219
Extension for miter gauge	600,900,1219	600,900,1219
Maximal width of cutting with the rip fence - complete extension tableand rip fence, mm	1400	1400
Sliding table,mm	2550,2800,3000,3200	2550,2800,3000,3200
Maximal width of cutting with scoring unit, mm	2400,2600,2900,3100	2400,2600,2900,3100
Bracket tablefor sliding table,mm	500 x 320	500 x 320

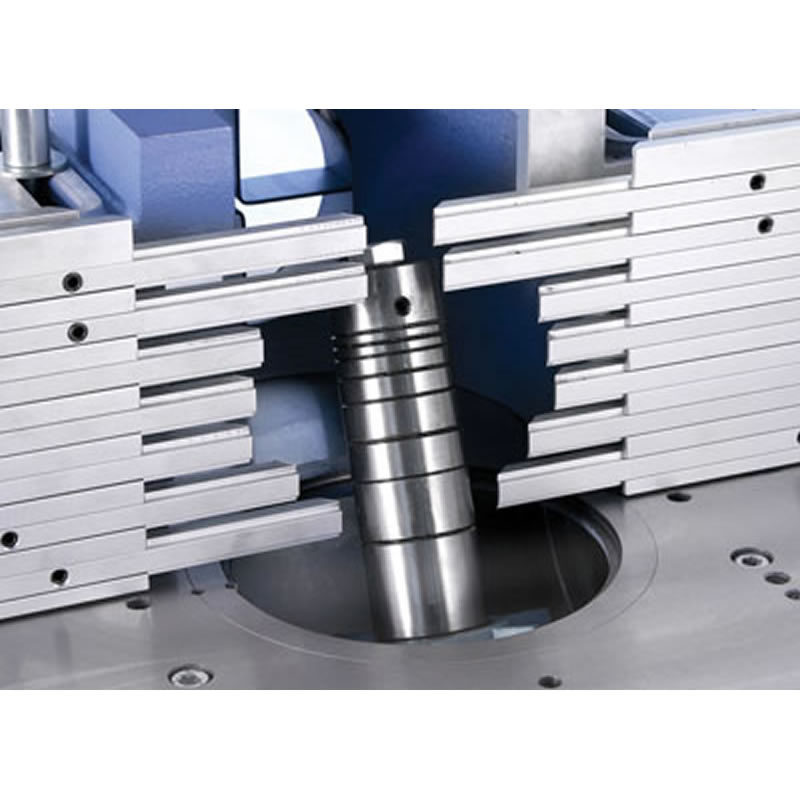

Spindle protector for profiling with Integral safety guides 2 x Lmm	500	500
Spindle rotation	Left / Right	Left / Right
Spindle speed (two-speed)	15000 / 9000	15000 / 9000
Motor power (two-speed), kW (HP)	4.5/5.5 (6.1/7.4)	4.5/5.5 (6.1/7.4)

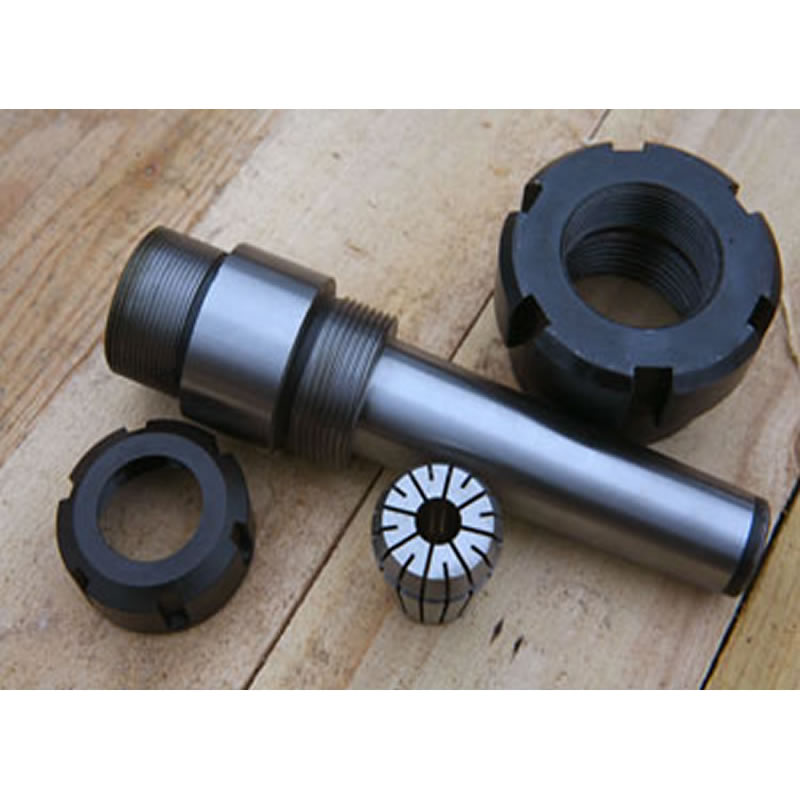

Changeable arbor MK4 diameter / usable height:	ø32/125;ø1¼”/125	ø32/125;ø1¼”/125
Tenoning table and tenoning hood,mm	ø300	ø300
