CNC Routers for Sale in Melbourne

Forza Machinery provides top-quality CNC machines with Loading and Unloading units in Melbourne, backed by a highly skilled team with extensive technical expertise. Our professionals guide you through every step of the process—from selecting the right CNC router to understanding its functionality and maintenance. While our machines are designed for ease of operation, we ensure you receive comprehensive instructions to maximize the benefits of your investment from day one.

👉 Read more about CNC Machines in Australia: The Complete Guide for Cabinet Makers & Manufacturers from Forza Machinery.

NikMann-3618k cnc machines with loading and unlading

NikMann-3618k

Price: $100,000.00 + GST

Fully Automated NikMann-3618k CNC Router with matrix working table, loading and unloading for nesting machininig with high productivity and:

  • Planetary reducer;
  • Syntec servo motors and drivers;
  • Nesting table with double-layer PVC;
  • 12-position linear tool magazine located under gantry, which reduces tool change time;
  • Air cooling, high speed Italian spindle has features like high torque, low noise, high speed;
  • Precise helical rack and pinion have features like high precision and low noise;
  • Automation lubrication linear rail system;
  • New design dust-free dust collector hood;
  • It works with all industry standard CAD/CAM software.

Price excludes Delivery, Installation and Training.

Looking for a more entry-level model? See our entry-level cnc model NikMann-2412.

For more information, please call: 1300 436 792

Machine configuration:

DESCRIPTIONNikMann-3618k
Table size X-Y:3640-1820 mm
Travel Speed X-Y-Z:60-60-20 m/min
Italian Electro-spindle:ISO-30
Electro-spinde Power:9.0 kW
Electro-spindle Speed:24,000 rpm
Drilling Head:10 spindles
Linear Tool Magazine:12 positions
Auto Tool Sensor:Included
Vacuum Pumps x 2:250 m3/h
Vacuum Table:PVC double layer
Inverter:11 kW
Taiwan Controller:Syntec
Taiwan Servo Motor:Syntec 1kW
Calibration System:Memory Card
Lubrication:Auto
Loading Lift:Included
Unloading Table:Included
Safety fence and light curtainsIncluded
Tool measuring sensorIncluded
Machine size X-Y:15000-3500 mm
For more information call:1300 4 FORZA

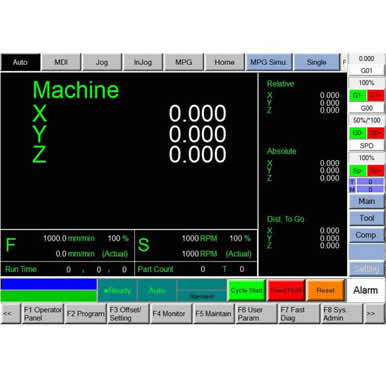

software interface

SOFTWARE INTERFACE

Syntec controller works with absolute servo, so after switch on machine, you can run program directly, no need to home all axes.

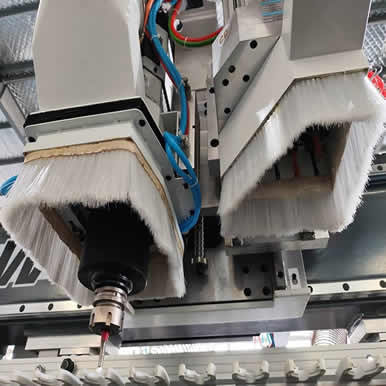

Electrospindle & Drill Head

ELECTROSPINDLE & DRILL HEAD

Machine is equipped with Italian HSD-9kW Electro Spindle and 10 drills on a Drill Head.

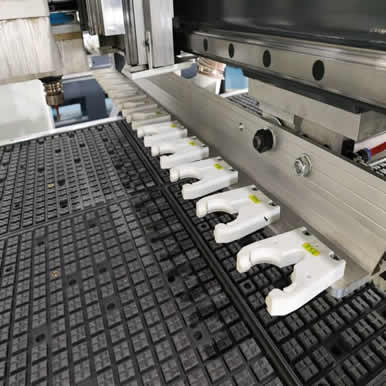

Linear Tool Magazine

LINEAR TOOL MAGAZINE

Machine can maximize your productivity with 12-positions linear tool magazine travelling with the gantry. ISO-30 cone attachment.
Italian Made Electro Spindle

ELECTRO SPINDLE

Machine is equipped with Italian Made HSD 9kW / 24,000 rpm air cooled Electro Spindle type ISO-30.

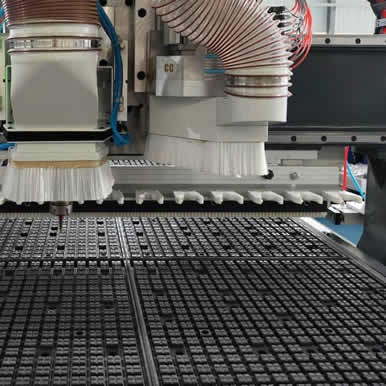

Vacuum Table

VACUUM TABLE

Spline matrix table for locking of pieces of any shape. Versatility and flexibility, offering always the maximum possibilities of configuration.
Vacuum Pump

VACUUM PUMP

A powerful 5.5kw pump delivers 250 m3/h and delivers maximum vacuum evenly across the selected table area.
Automatic device for tool length measurement

AUTO MEASUMENT TOOL

Automatic device for tool length measurement for more precise cutting and drilling.

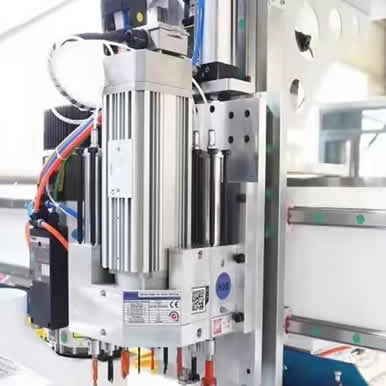

drill head

DRILL HEAD

Boring head for vertical boring operations with 10 independent mandrels to make short work of drilling, line boring and hinge hole machining.

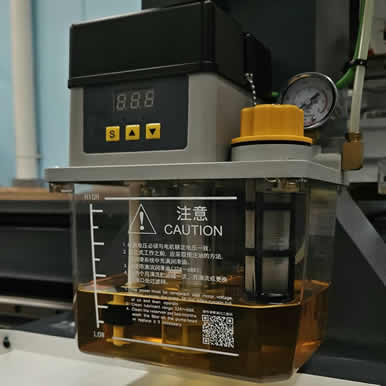

automatic bearings lubrication

AUTO LUBRICATION

The bearings are automatically lubricated from a centralised lubrication system in X and Y.
remote control

REMOTE CONTROL

Magnetic hand control makes machine and tools setups simple and easy for the operator.

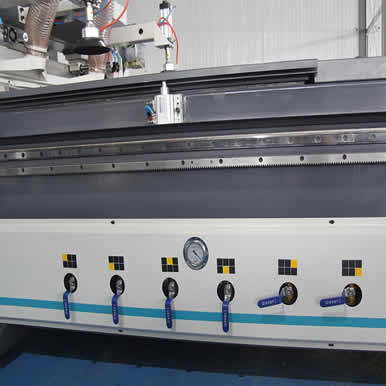

vacuum table sections

VACUUM TABLE SECTIONS

4 Vacuum zones - selected from the front of the machine direct vacuum where it’s needed.

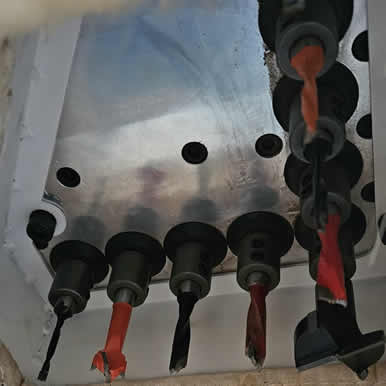

drill head configuration

DRILL HEAD CONFIGURATION

A powerful and versatile boring head with 10 drills, ideal for precise and efficient woodworking applications.

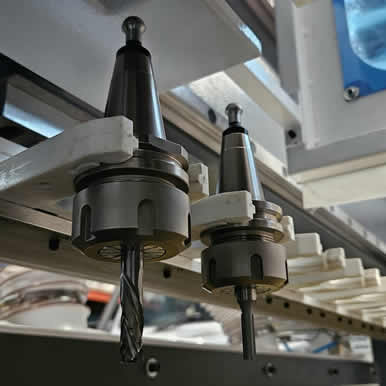

Iso-30 tools for electrospindle

ISO-30 TOOLS

This ISO-30 electro spindle is designed for high-precision machining and efficient tool changes, making it an excellent choice for CNC applications in woodworking and beyond.

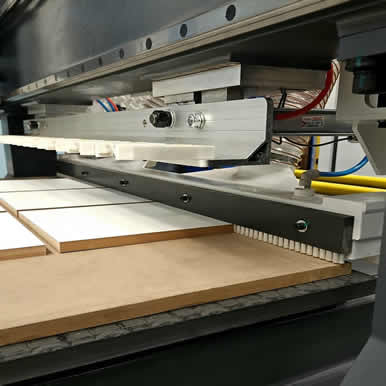

automatic push off device

UNLOADING PUSHER

Auxiliary panels unloading unit allows the machined pieces to be taken off the working table that will then be cleaned by the suction device.

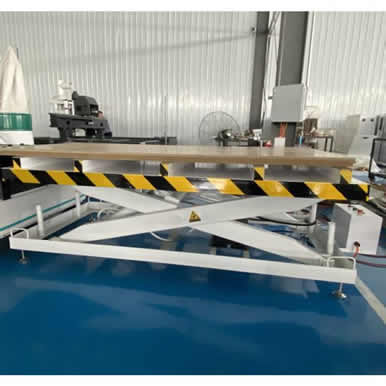

Automatic Lifter

HYDRAULIC LIFTING TABLE

Combined with the standard auto loading and alignment system, you now have a fully automated panel loading solution.
Unloading Conveyor

UNLOADING CONVEYOR

Panels are presented at the end of the table for unloading, ensuring they never outpace the operator.

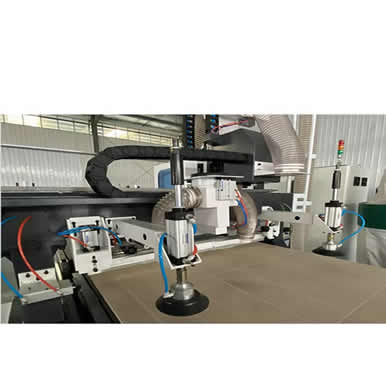

loading cups

LOADING CUPS

The auto vacuum loading system is built-in and ready for integration with optional scissor lifts.

NESTING CNC ROUTERS

Why Choose Forza Machinery?

  • 🇦🇺 Australian-owned and operated

  • 🇪🇺 European-made machinery

  • 🛠️ Full technical support and servicing

  • 📦 Wide range of woodworking equipment

  • 🤝 Trusted by professionals for over 25 years

We are committed to supplying reliable, high-performance machinery that delivers real results.

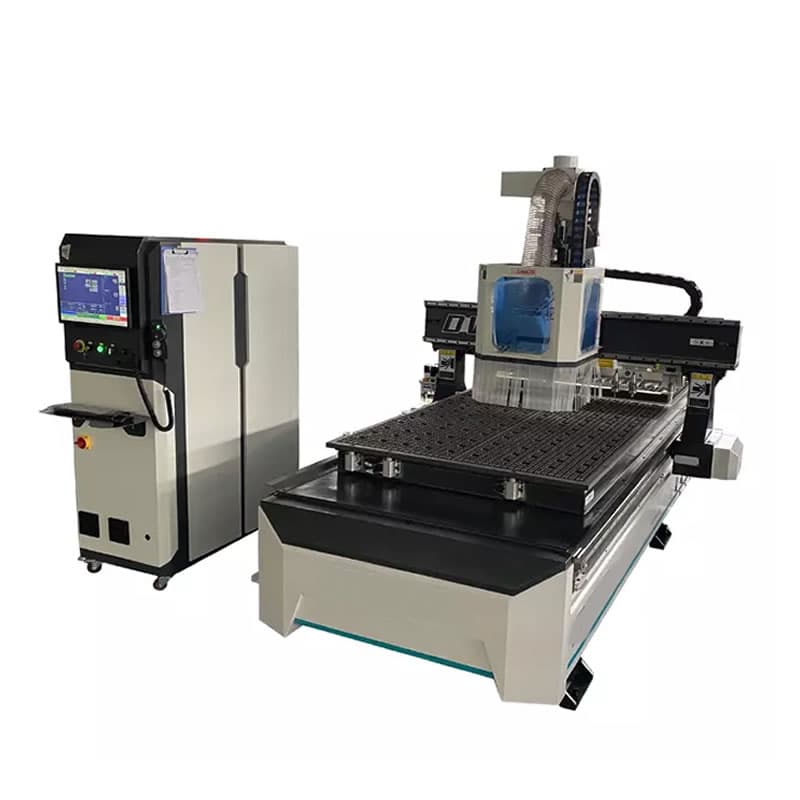

CNC machine Australia NikMann-2412

Nesting CNC Machines NikMann-2412

industrial CNC router NikMann-2412k

Automatic Nesting Lines NikMann-2412k

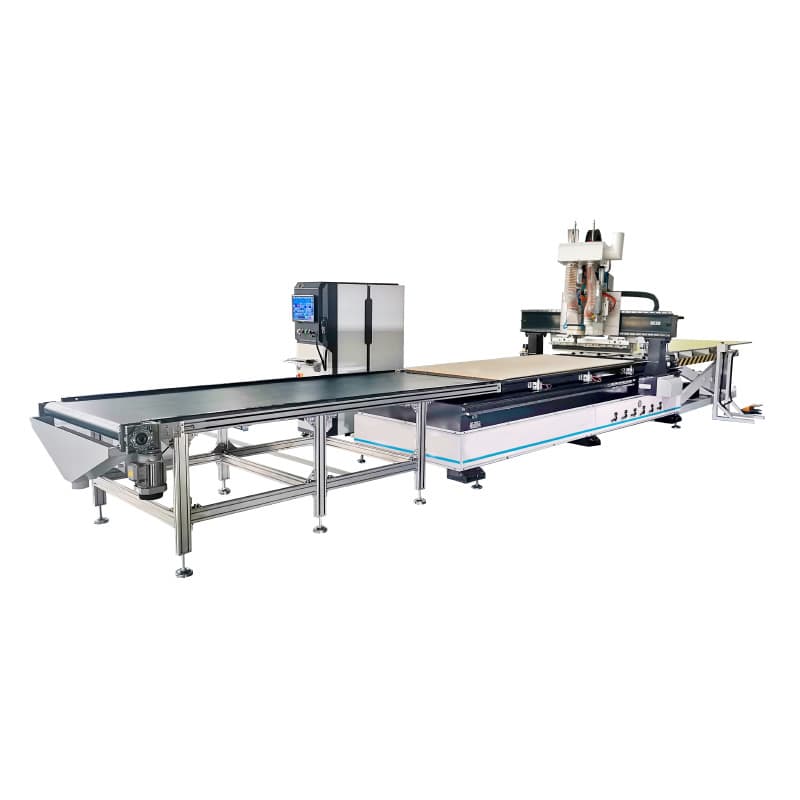

woodworking CNC machine NikMann 3618-k
