Sliding Table Panel Saw NikMann-S350

NikMann-S350 Panel Saw

Price: $22,000.00 + GST

Heavy Duty panel saw with:

  • Aluminum sliding table 400mm wide;
  • Telescopic fence 1500 mm with two turnable supports;
  • Rip fence 1500mm with Digital screen;
  • Saw blade with electrical tilt to 46°;
  • Electric movement for up and down motion;

Price excludes Delivery, Installation and Training.

Model:NikMann S350-cnc
Sliding table length:3200-3800 mm.
Sliding table width:400 mm.
Parallel fence width:1500 mm.
Main saw blade diameter:300-350 mm
Maximal height of cut to 0°:70-110 mm
Maximal height of cut to 45°:35-70 mm
Main saw blade speed:3800/5200 rpm
Main motor:5.5 Kw
Scoring saw blade diameter:120 mm
Scoring motor:1.1 Kw
Power:400 v.
Machine Dimensions:3800×3100×900 mm
Dust Extractor:Optional
Ducting Pipes:Optional
Installation:Optional
Delivery:Optional
For more information call:1300 4 FORZA

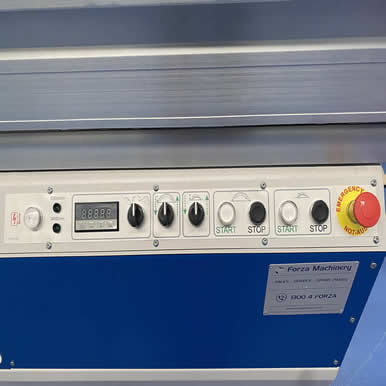

Control Panel on NikMann-S350

CONTROL PANEL

Electrical lifting and electrical tilting for main and scorer saw blades. Automatic start up for dust extractor unit.
panel saw NikMann S350 rise and Fall

PRECISION & QUALITY

The Rise & Fall mechanism runs on linear guides with heavy duty eletric actuator.

Cross cut stop

CROSS CUT STOP

Electronic readouts on the cross cut stops with detecting system on magnetic band. The stops can be easily read even from distance.
Heavy Duty Body

HEAVY DUTY BODY

The carriage will never require adjustment due to its closed reticular geometry with steel guides using an exclusive method of mechanical fixing.

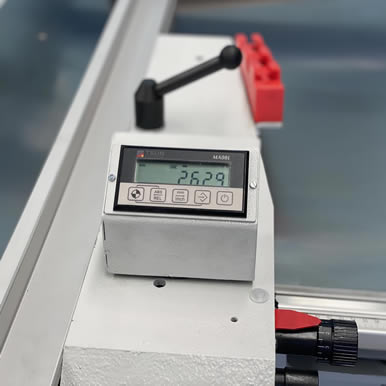

Rip fence on NikMann-S350 panel saw

RIP FENCE

Sliding of the rip fence support on round bar equipped with digital readout for fence position with detecting system on magnetic band.

NikMann Sliding table

SLIDING TABLE

The carriage’s sliding system uses bearings that roll along grounded prismatic tracks, providing smoothness and straight cuts.

panel Saws

EASY TILT GUIDE - 10 YEARS WARRANTY

High precision double-sided trunnion support system.
