Sliding Table Panel Saw NikMann-S350-cnc

NikMann-S350-cnc Panel Saw

Price: $30,000.00 + GST

Heavy Duty panel saw with:

  • CNC-drive control unit with 10.0” Touch screen ;
  • Telescopic fence 1500 mm with two turnable supports;
  • Rip fence calibration position;
  • Saw blade with electrical tilt to 46°;
  • Electric movement for Up and Down motion;
  • Digital readout on your first crosscut stop;
  • Strong, stable platform CNC machined;

Price excludes Delivery, Installation and Training.

Model:NikMann S350-cnc
Sliding table length:3800 mm.
Sliding table width:400 mm.
Paralel fence width:1500 mm.

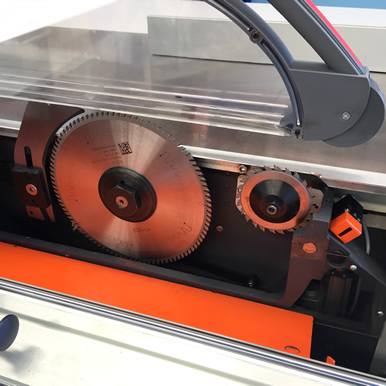

Main saw blade diameter:300-350 mm
Maximal height of cut to 0°:70-110 mm
Maximal height of cut to 45°:35-70 mm
Main saw blade speed:3800/5200 rpm

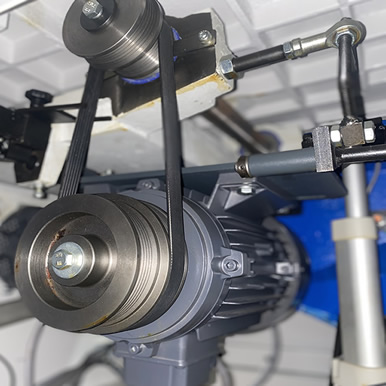

Main motor:5.5 Kw
Scoring saw blade diameter:120 mm
Scoring motor:1.1 Kw
Power:400 v.
Machine Dimensions:3800×3100×900 mm
Dust Extractor:Optional
Ducting Pipes:Optional
Installation:Optional
For more information call:1300 4 FORZA

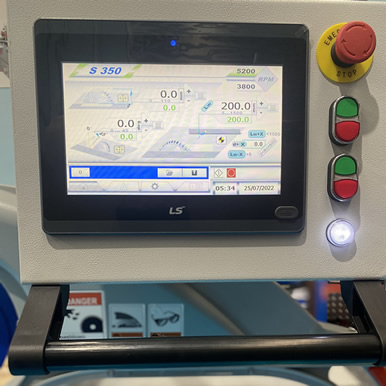

NikMann S350-cnc control panel

CONTROL PANEL

CNC-drive control unit with 10.0” Touch screen situated in the overhead control panel functions.

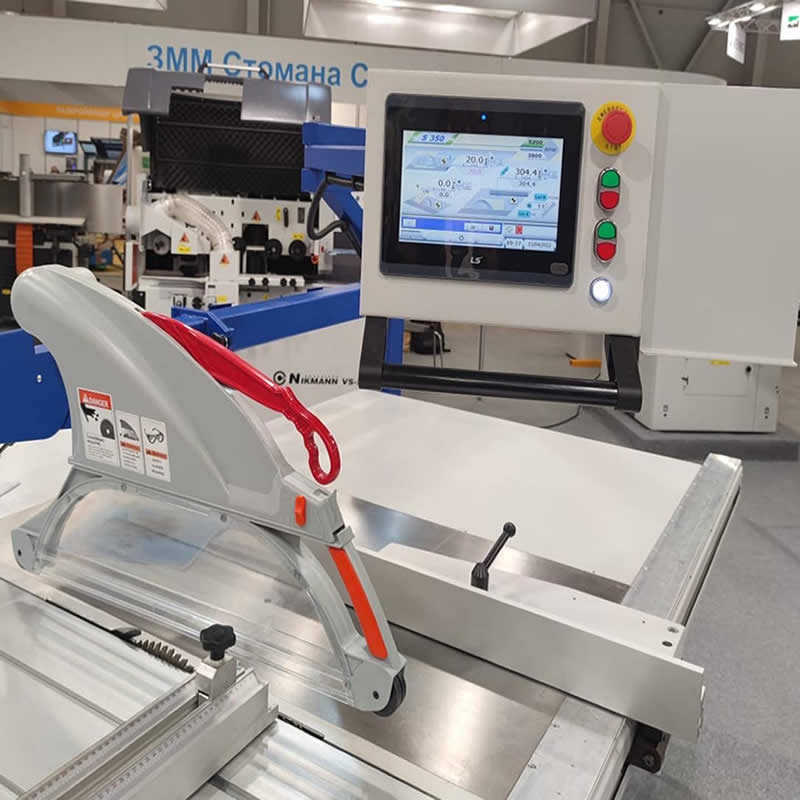

RIP Fence Control

RIP FENCE CONTROL

The rip fence is positioned by a motor and runs via a dust-free integrated ball screw in the table.

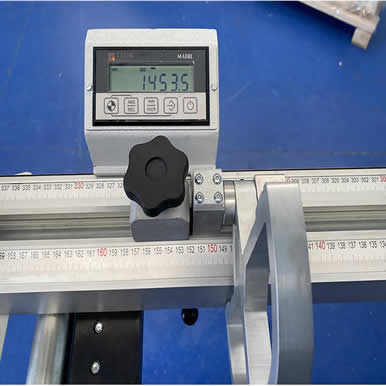

Digital Precision is Standard

DIGITAL PRECISION IS STANDARD

The heavy section of cross cut fence is fitted with Digital Readout, which will allow you to position the large turnover stop.

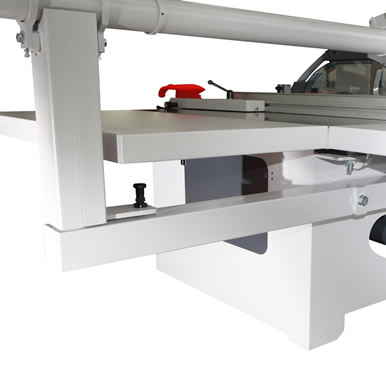

Heavy Duty Body

HEAVY DUTY BODY
Digital Cross Cut Stop

DIGITAL CROSS CUT STOP

Electronic Readouts on the cross cut stops with detecting system on magnetic band. The stops can be easily read even from distance.

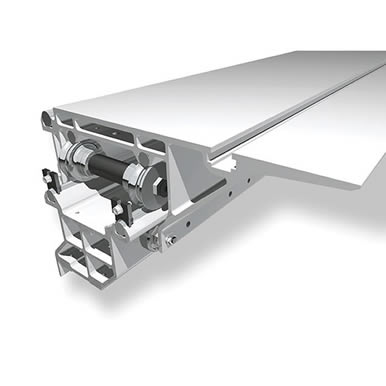

NikMann Sliding table

SLIDING TABLE

The carriage’s sliding system uses bearings that roll along grounded prismatic tracks, providing smoothness and straight cuts.

panel saw NikMann S350 rise and Fall

PRECISION & QUALITY

The Rise & Fall mechanism runs on linear guides and powerfull linear actuator.

Forza Machinery Youtube chanel

YOUTUBE

Watch a video on our YOUTUBE chanel for a heavy duty sliding table panel saw NikMann-S350-cnc from Europe.

RELATED PRODUCTS:

Panel Saws NikMann S350-cnc

NikMann-S350-cnc Automatic Panel Saw

$35,000.00 + GST

Sliding table panel saw with 3 controlled axes for businesses making their first investment to improve production.

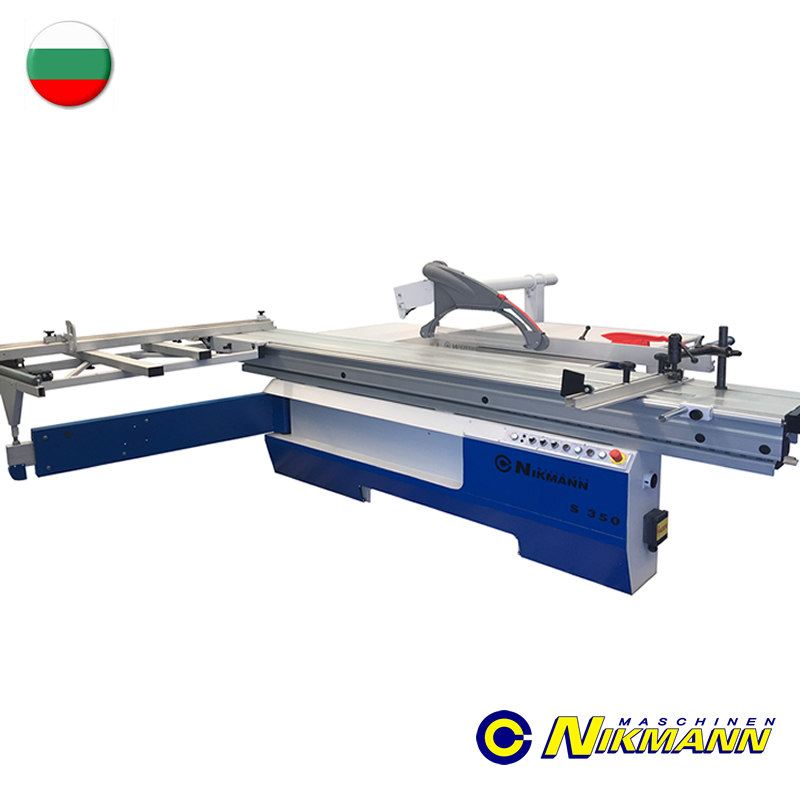

Panel Saws NikMann S-350

NikMann-S350 Panel Saw with electric lifting/tilting

$25,000.00 + GST

The range of semi automatic panel sizing saw able to satisfy the small and medium companies needs.

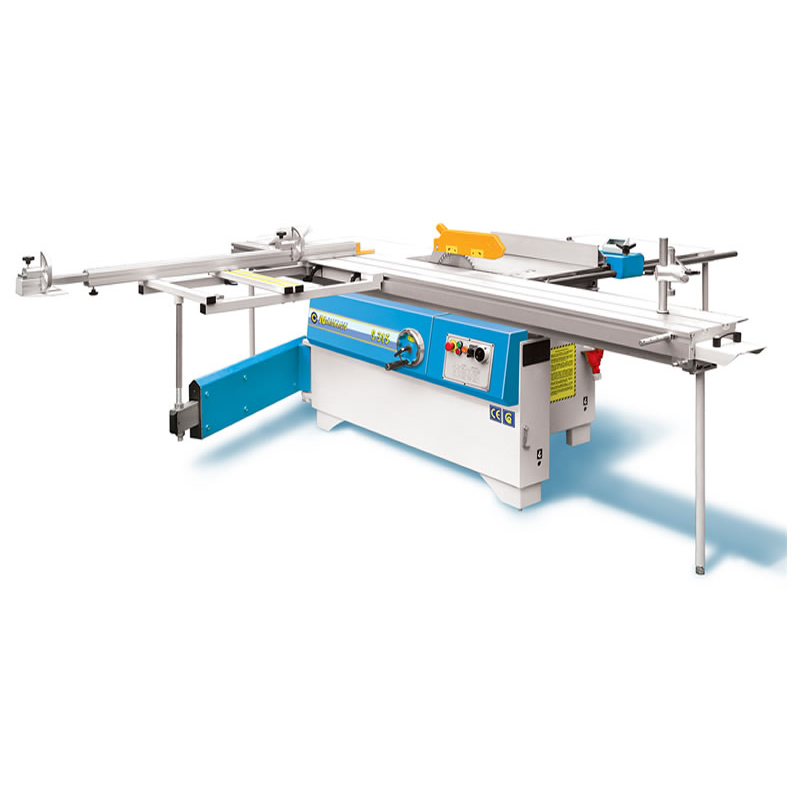

Table Saws NikMann S315A
