Alarm-08: Rotary Photo Encoder D5 Does Not Detect Motion on NikMann Edgebanders

Alarm-08 on a NikMann edgebander indicates that the rotary photo encoder D5 is not detecting motion. This alarm prevents the machine from operating safely, as the control system cannot confirm conveyor or panel movement.

When Alarm-08 appears, the edgebander may stop feeding panels, disable machining units, or fail to start entirely.

What Does Alarm-08 Mean on a NikMann Edgebander?

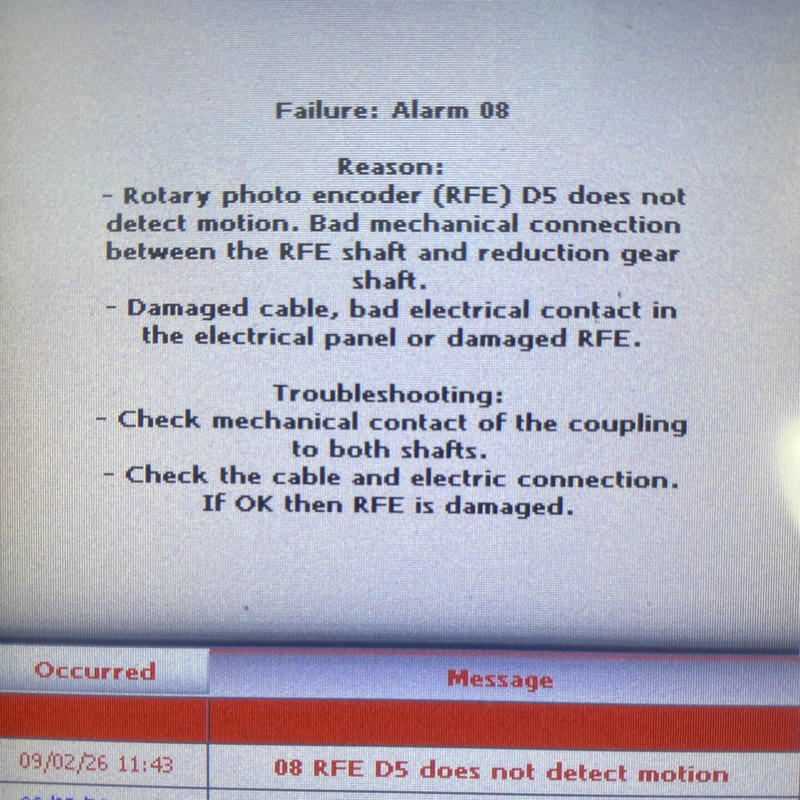

Alarm-08 is triggered when the PLC does not receive a movement signal from the D5 rotary photo encoder within the expected time.

The encoder is responsible for:

Monitoring conveyor belt movement;
Synchronising feed speed;
Bad ellectrical contact in electrical cabinet;
Timing trimming, corner rounding, scraping, and buffing>;
Ensuring safe machine operation;
Without encoder feedback, the machine cannot operate correctly.

📞 Call Forza Machinery today to book your edgebander for service in Melbourne.
📍 Servicing Melbourne, Victoria & Australia-wide support
🔧 Preventative maintenance & emergency repairs available

Common Symptoms When Alarm-08 Appears

If your NikMann edgebander shows Alarm-08, you may notice:

❌ Conveyor belt not moving
❌ Panel feed stops immediately after start
❌ Trimming or corner rounding units not engaging
❌ Machine stops during operation
❌ Inconsistent or incomplete edging

This fault commonly affects NikMann PUR edgebanders and compact edgebanders in high-dust environments.

Main Causes of Alarm-08 (D5 Encoder Not Detecting Motion)

1. Dust or Glue Build-Up

Glue residue or wood dust can block the optical sensor, preventing signal detection.

2. Encoder Wheel Slipping or Worn

Loss of contact between the encoder wheel and conveyor drive can stop motion detection.

3. Incorrect Encoder Alignment

If the D5 encoder is mounted incorrectly or too far from the contact surface, it will not register movement.

4. Loose Cables or Damaged Wiring

Vibration during operation can loosen plugs or damage the encoder cable.

5. Faulty Rotary Photo Encoder D5

After extended use, the encoder itself may fail and require replacement.

How to Clear Alarm-08 on a NikMann Edgebander

✔ Clean the rotary encoder and sensor lens
✔ Check encoder alignment and pressure
✔ Inspect cables, plugs, and terminals
✔ Confirm encoder signal input at the PLC
✔ Replace the D5 rotary photo encoder if faulty

⚠️ Incorrect adjustment may cause repeated alarms or further damage — professional servicing is strongly recommended.
